10-14 RAPTOR REAR 3.0 ZETA PB PAIR

$3,149.95
SKU: FRDK-95200

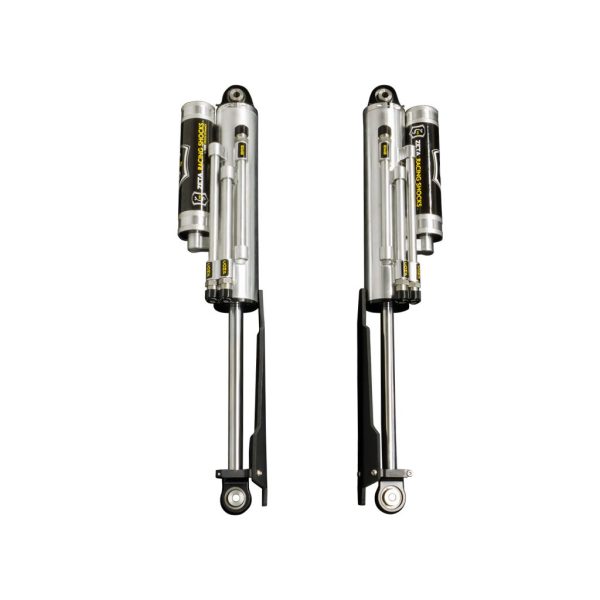

2010-2014 RAPTOR REAR 3.0 ZETA PIGGYBACK SHOCK PAIR

  • 3.0 OEM Replacement PiggyBack Reservoir Zeta 3 Tube Bypass Rear Shocks
  • Easy-to-Adjust Detented Adjustment Knobs Offer Quick Adjustability without the Use of Tools
  • High Flow CNC Machined Welded Bypass Blocks designed to Increase Fluid Flow for Enhanced Performance & High Definition Tuning
  • High Resolution Bypass Valves Designed for Noticeable Fine-Tuning of  Rebound and Compression Damping
  • Replaceable Bypass Tubes That Can Easy Slide in to Position if you were to Dent or Damage One
  • Direct Bolt in to OEM Location with Bypass Adjustment Knobs Easily Accessible for Tuning AdjustmenT
  • Special Engineered Dampened Valve Stops for Quiet and Precise Operation without the Standard Bypass Loud “Clicking” Noise you will find with Other Brands
  • Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
  • UHMH Machined Shaft & Rod End Protective Shin Guards Standard with Every Kit

Our Rear Zeta Ford SVT Raptor Shocks are a true 3.0” (inside and out), three tube External Bypass shock. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature dampened valve stops for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the “Easy-to-Adjust” knobs and the replaceable bypass tubes. The “Easy to Adjust” Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.

Additional Attributes:

GTIN: 00840103407180
Adjustable: Yes
Boot Included: yes
Bore Diameter: 2.75
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Silver
Cylinder Material: Steel
Damping Type: Oil
71060: Yes
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
Service Parts: 302005 – 3.0 ICON REBUILD KIT (ALL)
Shaft Diameter: 1
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Rod End Measuring Point: Center of Eylet
Tube Outside Diameter: 3
Upper Mount Type: Eyelet

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
