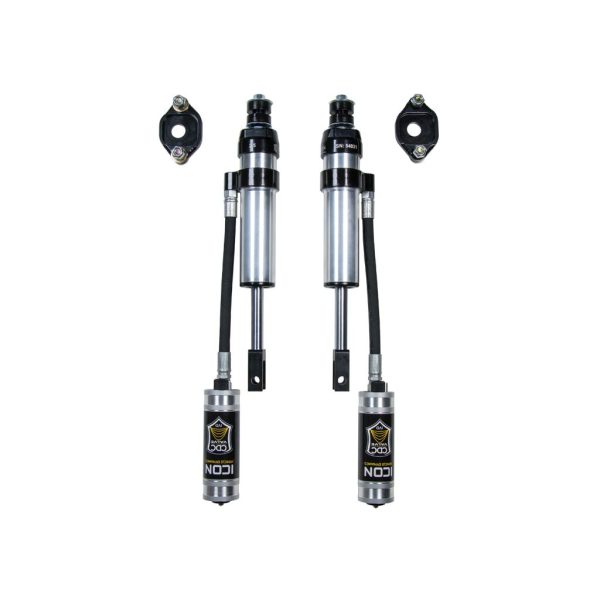

11-19 GM HD 0-2″ 2.5 CDCV SHOCK SYSTEM W/ UCA

$2,337.25
SKU: FRDK-78725

2011-2019 GM HD 0-2" LIFT 2.5 REMOTE RESERVOIR CDCV SHOCK SYSTEM WITH UCA

  • ICON Delta Joint
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8″ diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
  • 100% Rebuildable
  • 1026 DOM Steel Construction
  • 100% Revalveable
  • CNC Bent Tubing
  • Serviceable Dual Stage Bushings
  • CNC Machined Bushing Housings and Sleeves
  • Built-In Caster Correction
  • Black Semi-Gloss Powder Coat Finish
  • ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all of ICON’s Shock Absorbers, the V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Additional Attributes:

GTIN: 00840103408705
Service Parts: 614521 – 78500 BUSHING AND SLEEVE KIT MFG AFTER 8/2015
Suspension Grade Type: Performance
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable: No
Ball Joint Included: Yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Type: Threaded
Bushing Color: Black
Bushing Material: Polyurethane
Bushings Included: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color: Black
Control Arm Color: Black
Control Arm Construction: Tubular
Control Arm Material: Steel
Finish: Powdercoated
Grade Type: Performance
Grease Fitting Included: yes
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Pre-Greased: No
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys | 18×9″ w/ 5.5” Backspace / 12mm Offset

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
