11-19 GM HD 0-2″ FRONT 2.5 VS RR CDCV EXT TRAV PAIR

11-19 GM HD 0-2" FRONT 2.5 VS RR CDCV EXT TRAV PAIR
$1,364.95
SKU: FRDK-77832CP

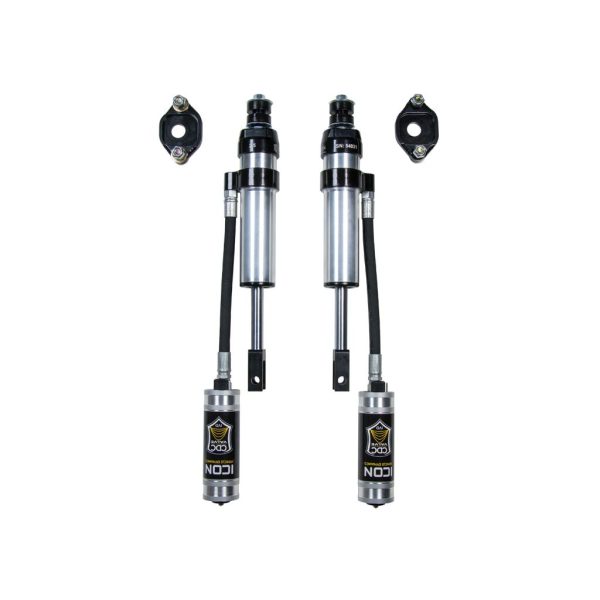

2011-2019 GM HD 0-2" LIFT FRONT 2.5 VS REMOTE RESERVOIR CDCV EXTENDED TRAVEL SHOCK PAIR

  • ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • 100% Rebuildable
  • 100% Revalveable

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Additional Attributes:

GTIN: 00840103406374
Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KIT
Adjustable: Yes
Boot Included: NO
Bore Diameter: 2.25
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Silver
Cylinder Material: Steel
Damping Type: Oil
71060: Yes
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: Clevis
Mounting Hardware Included: Yes
Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Rod End Measuring Point: Center of Clevis Holes
Tube Outside Diameter: 2.5
Upper Mount Type: Stem

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
