18-UP JL 2.5″ REAR 2.5 VS PB CDEV PAIR

18-UP JL 2.5" REAR 2.5 VS PB CDEV PAIR
$1,994.95
SKU: FRDK-27726EP

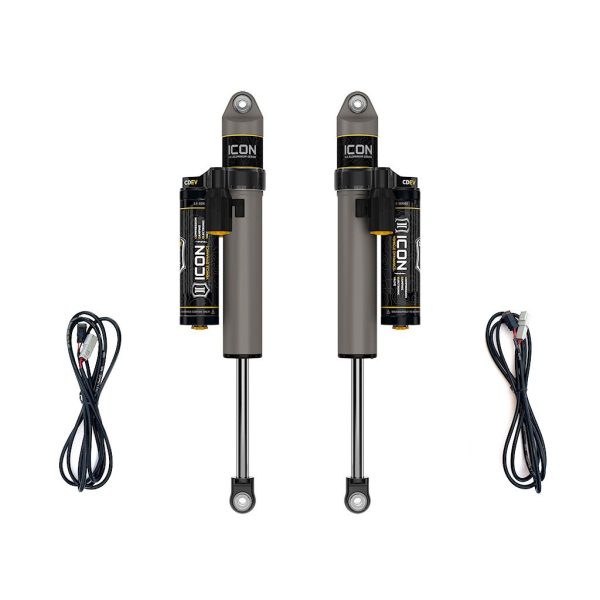

2018-UP JEEP JL 2.5" LIFT REAR 2.5 VS PIGGYBACK CDEV SHOCK PAIR

  • ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • 100% Rebuildable
  • 100% Revalveable

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Additional Attributes:

GTIN: 00840103411743
Shock Absorber Rod End Measuring Point: Center of Eylet
Tube Outside Diameter: 2.5
Upper Mount Type: Eyelet
Add-On Part: 23502 – 18-UP JEEP JL / 20-UP JEEP JT IIC INSTALL KIT
Adjustable: Electronically
Boot Included: NO
Bore Diameter: 2.25
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Grey
Cylinder Material: Aluminum
Damping Type: Oil
71060: Yes
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
