19-UP RANGER REAR 2.5 VS PB PAIR

19-UP RANGER REAR 2.5 VS PB PAIR
$1,081.45
SKU: FRDK-97730P

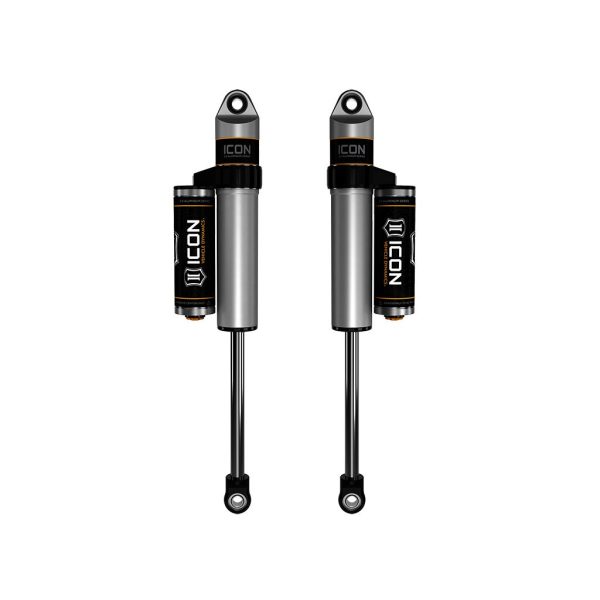

2019-UP FORD RANGER REAR 2.5 VS PIGGYBACK SHOCK PAIR

  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
  • 100% Rebuildable
  • 100% Revalveable

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Additional Attributes:

GTIN: 00840103408606
Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Rod End Measuring Point: Center of Eylet
Tube Outside Diameter: 2.5
Upper Mount Type: Eyelet
Add-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Adjustable: NO
Boot Included: NO
Bore Diameter: 2.25
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Silver
Cylinder Material: Aluminum
Damping Type: Oil
71060: Piggyback Reservoir
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: Eyelet

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA

PDF:
