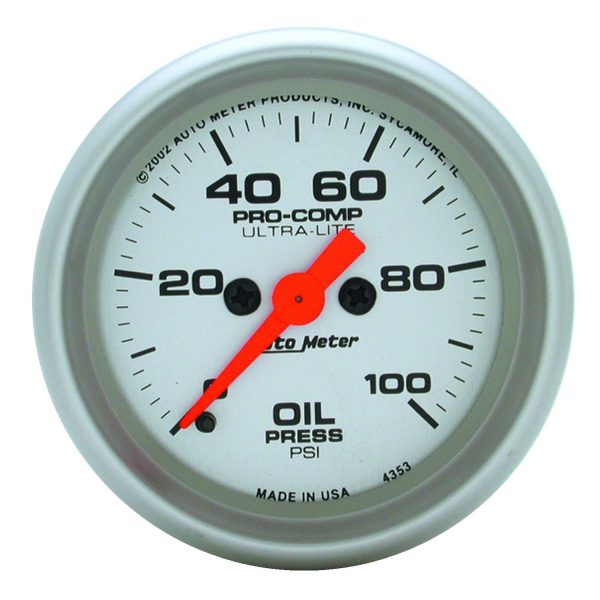

2-1/16in OIL PRESSURE, 0-100 PSI, ULTRA-LITE

2-1/16in OIL PRESSURE, 0-100 PSI, ULTRA-LITE
$266.09
SKU: BDHZ-4353

GAUGE, OIL PRESSURE, 2 1/16in, 100PSI, DIGITAL STEPPER MOTOR, ULTRA-LITE

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Gauge kit includes 1/8in NPT stainless steel pressure transducer, 1/4in NPT adapter, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
  • Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy While Keeping Hazardous Fluids Outside Of The Vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up

The Life Blood Of Your Engine, A Lack Of Oil Pressure Is One Of The Most Catastrophic Scenarios That Can Happen. Knowing The Precise Pressure Is Critical To Both Its Longevity And Performance, As Well As Your Peace Of Mind. Autometers Digital Stepper Motor Oil Pressure Gauge Utilizes The Most Advanced Technology On The Market To Deliver Accuracy And Durability You Wont Find Anywhere Else. Peak Value Recall And A Configurable Warning Point Help You To Keep Your Eyes On The Task At Hand. Our Advanced 1/8In Npt Solid State Pressure Transducer (Included) Provides The Best Possible Measurements With Unparalleled Resistance To Vibration And Heat. A Direct Plug In Wiring Harness Is Also Included For Ease Of Installation And Data Logging Is Available Thanks To A .5 – 4.5V Analog Output.

Additional Attributes:

GTIN: 00046074043536
Add-On: 2268;2269;2265;2266;2267;4354
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Cup/Hole Size – Metric – MM: 52.4mm
Cup/Hole Size – Standard – IN: 2-1/16in
Dial Color: Silver
Gauge Type: Oil Pressure
Includes Adapter/Fitting: 3/8in NPT and 1/2in NPT adapter fittings
Includes Mounting Hardware: 2230
Includes Sensor Unit: 2246
Includes Wire Harness: 5227
Lens Style: Flat, Clear
Lighting Color: White Incandescent
Lighting Type: Incandescent
Movement: Electric, Digital Stepper Motor
Outer Bezel Diameter – Standard: 2-1/4in
Pointer Color: Fluorescent Red
Product Type: Gauge Oil Press
Prop 65 – Short Label: Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, visit www.p65warnings.ca.gov.
Prop 65 – Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Prop 65 (C, R or CR): C
Prop 65 Yes/No: Yes
Range: 0-100 PSI
Related Item: 0447LXL
Size – Metric – MM: 52.4mm
Size – Standard – IN: 2 1/16in
Upsell: P32521

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
