20-UP GM HD 0-2″ RR SHOCK SYS W/ BILLET UCA

20-UP GM HD 0-2" RR SHOCK SYS W/ BILLET UCA
20-UP GM HD 0-2" RR SHOCK SYS W/ BILLET UCA
$3,086.95
SKU: FRDK-78734

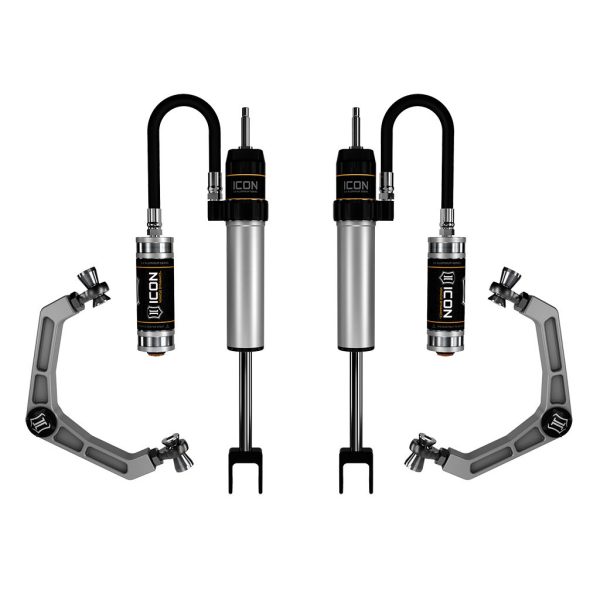

2020-UP GM HD 0-2" LIFT REMOTE RESERVOIR SHOCK SYSTEM WITH BILLET UCA

  • Features ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
  • PTFE Lined 7/8” FK Rod Ends for improved response
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Nitrogen charged monotube design with remote reservoir
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Built in o-ring sealed dust cover cap
  • Vehicle specific taper pin provides OE-like fitment
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 7/8″ diameter induction hardened, chrome plated shock shaft
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 100% Rebuildable
  • 100% Revalveable
  • CNC machined 6061 billet aluminum construction for light weight and exceptional strength
  • Additional camber and caster adjustability allows for precise wheel alignment

These upper control arms feature ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Additional Attributes:

GTIN: 00840103410562
Add-On Part: 77202 – 2020-UP GM HD FRONT SPLASH GUARD KIT
Adjustable: No
Ball Joint Included: Yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Type: Threaded
Bushing Color: Gold
Bushing Material: Rod End Bearing
Bushings Included: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Control Arm Color: Silver
Control Arm Construction: Billet
Control Arm Material: Aluminum
Finish: Powdercoated
Grade Type: Performance
Grease Fitting Included: yes
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Pre-Greased: Yes
Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys | 18×9″ w/ 5.5” Backspace / 12mm Offset
Service Parts: 614520 – DELTA JOINT INSTALL ADAPTER AND SHIM
Suspension Grade Type: Performance

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
