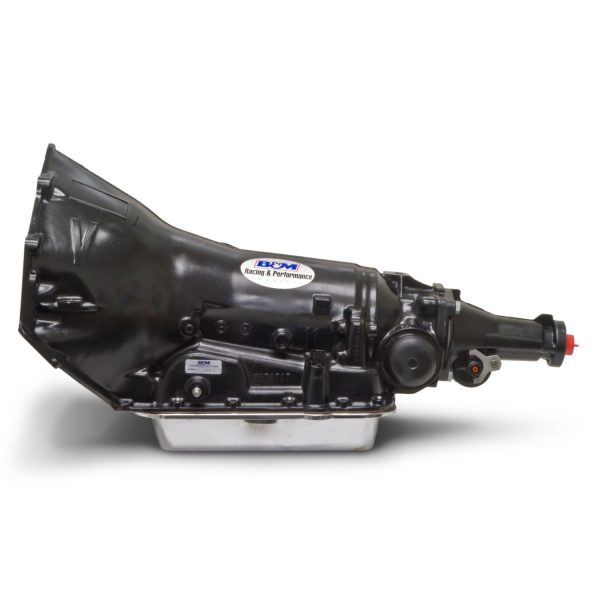

Street/Strip Transmission; Max 500 HP/450 ft./lbs. Torque; Incl. Intermediate/Low Roller Clutches;
Legendary B&M transmission for street use. B&M’s Street Strip transmission is a complete ready to run unit (less converter) for high performance street and mild strip use. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. Fits 1984 or later GM (except Corvette and 60 degree V6) with a 30 tooth spline converter and has a mechanical type speedometer connection. Suitable for use behind engines producing up to 450 lb.ft. of torque. Won’t replace 4L60E applications (post 1993). Includes a Corvette 2-4 servo assembly, recalibrated valve body, new overdrive sprag assembly, new external electric connector, rebuilt front pump and governor with new gear, all new B&M high performance friction plates, new thrust washer kit, races, thrust bearings bushings and 2-4 band, high performance reaction carrier assembly, heavy duty sunshell and improved lubrication on sun gear. Max 500 HP / 450 Ft/Lbs.
GTIN: 00019695001353
Automotive Item Grade: High Performance
California Proposition 65 Chemical Name 1: Lead
California Proposition 65 Chemical Name 2: Chromium (hexavalent compounds)
California Proposition 65 Chemical Name 3: Benzene
Corvette 2-4 Servo Assembly: Included
Disclaimer: Transmission shipped without speedometer driven gear or housing
First Gear Ratio: 3.06:1
Second Gear Ratio: 1.63:1
Torque Capacity: 450 ft/lbs.
Trans Model: GM- 4L60E (Auto) 4 Speed
Valve Body Configuration: Recalibrated
WARNING CA Proposition 65: No
Emissions : Released
Life Cycle Status: Available To Order
Quantity of Each: 1
Package UOM: EA
9500377-04
