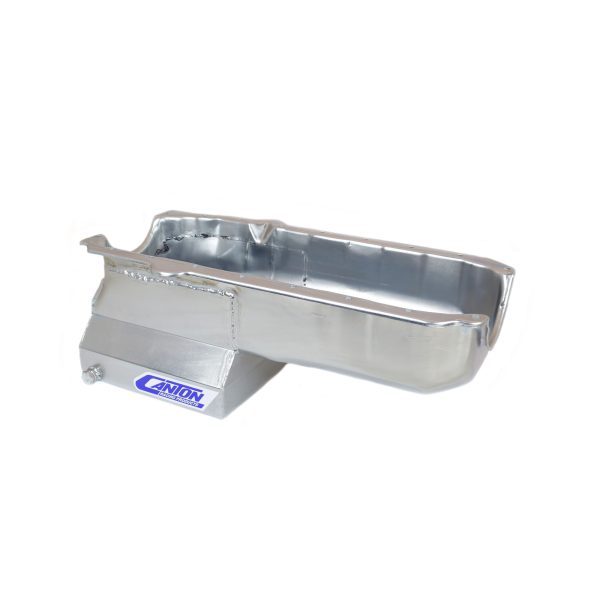

Canton 13-120 Oil Pan Small Block Chevy Pre-1980 Deep T Sump Drag Race Pan

This Small Block Chevy "T" sump drag race oil pan is for pre-?80 blocks with a left side dipstick. It has a 7-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 7 qt system capacity. This pan requires a short oil filter, and one of our pickups. Will work with stock or aftermarket starters.

Additional Attributes:

GTIN: 00887753711649
Baffled: Yes
Kicked Out: Yes
Sump Width: 10.5 inches
Sump Depth: 7.5 inches
Stoke: 3.875 inches
Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Recommended Accessory 5: 20-021 – Bolt-On Pickup for Melling M10555 Pumps
Recommended Accessory 4: 20-023 – Pickup for Small Block High Volume M155HV Pump w/ 3/4″ Inlet
Recommended Accessory 3: 20-020 – Pickup for Small Block High Volume M55HV Pump
Recommended Accessory 2: 20-013 – Pickup for Small Block Standard Volume M155 Pump with 3/4″ Inlet
Recommended Accessory 1: 20-010 – Pickup for Small Block Standard Volume Pumps M55 & M55A
Pickup Included: No
Material: 16 Gauge Steel
Hardware Included: No
Capacity: 6 Quart System Capacity
Gasket or Seal Included: No
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: Trap Door Baffle For Oil Control
Feature 3: Built in Crank Scraper

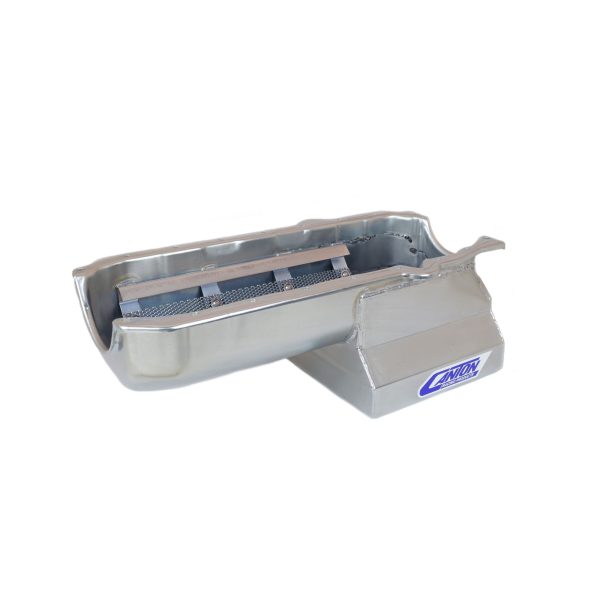

Feature 2: Removable Screen Windage Tray
Feature 1: Features Competition Oil Recovery System
Engine: For S.B. Chevy Pre-1980 Blocks
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: Yes
Windage Tray Included: Yes

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA

PDF:

Pan Install – Standard Part B
