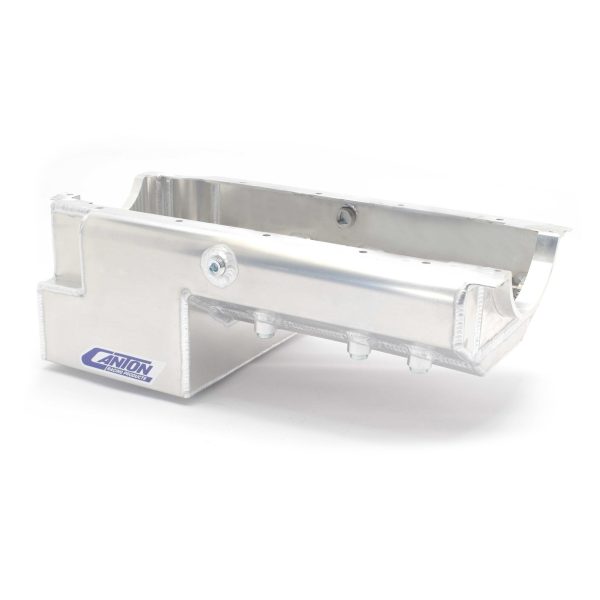

Canton 13-348A Oil Pan For Big Block Chevy Power Series

$1,269.60
SKU: BGTF-13-348A

Canton 13-348A Oil Pan For Big Block Chevy Power Series

  • 7 qt System Capacity
  • Clears 4.5″ Stroke
  • Trap Door Baffle
  • Pro-Style Oil Recovery Pouch

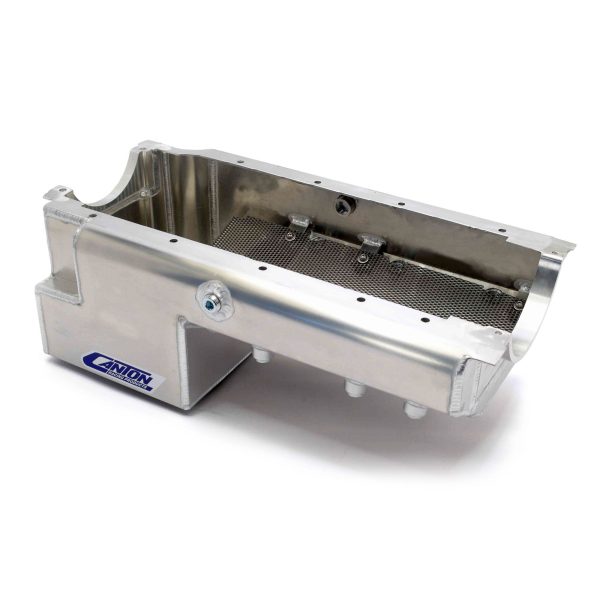

  • Built In Screen Windage Tray
  • 1/2″ NPT Drain Bungs (1 on each side)
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug

This aluminum drag race oil pan is for BBC Mark 4 blocks. It has an 8" deep by 10" long and 12" wide sump and an 7qt. system capacity. Takes up to a 4.75" stroke with a steel rod. This pan requires our 20-170 pickup. Will work with an aftermarket starter & a 168 tooth flywheel.

Additional Attributes:

GTIN: 00887753711854
Stoke: 4.75 inches
Feature 5: Provision for Canton Pan Mounted Dipstick
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 1: 20-170 – Pickup for BBC Oil Pumps
Pickup Included: No
Material: .100 Thick Aluminum
Kicked Out: No
Hardware Included: No
Gasket or Seal Included: No
Finish: Raw Aluminum
Feature 7: Clears 4.75″ Stroke
Feature 6: Magnetic Drain Plug
Feature 4: Trap Door Baffle For Oil Control
Sump Depth: 8 inches
Feature 3: Removable Screen Windage Tray
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Engine: For B.B. Chevy Mark 4 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Capacity: 7 Quart System Capacity
Baffled: Yes
Windage Tray Included: Yes
Sump Width: 11.25 inches
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
