Canton 15-400 Oil Pan For Pontiac 301-455 High Capacity Street

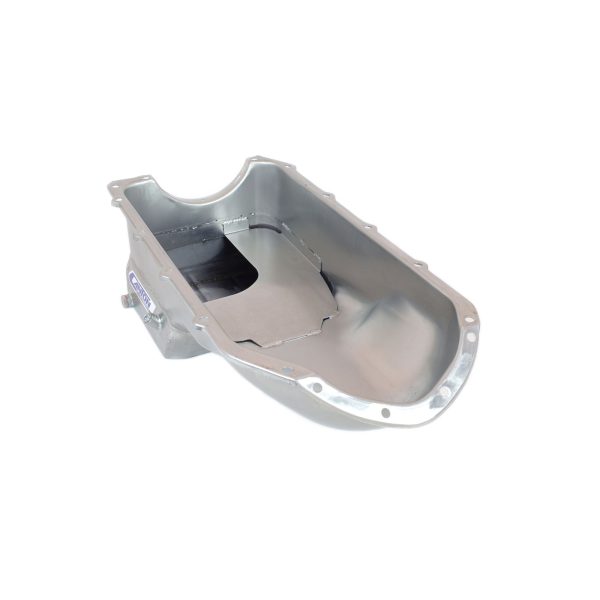

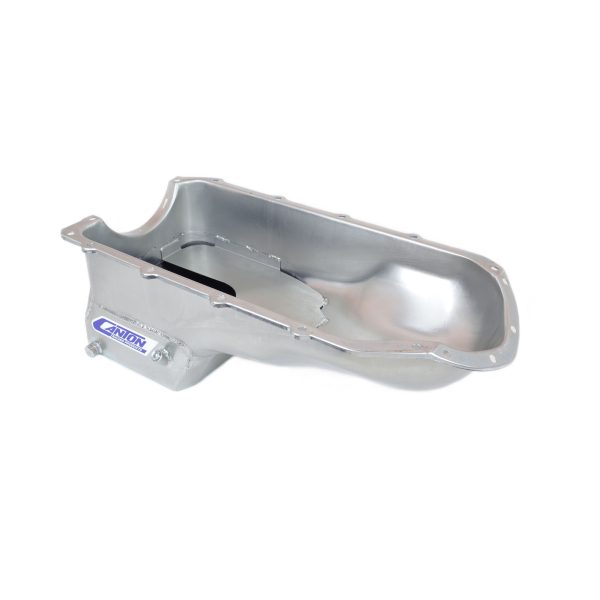

This high capacity pan is for Pontiac 301-455 engines and features a side pouch which offers increased oil capacity while still providing considerable x-member clearance. It has an 8" deep by 11-1/2" wide sump, with a 6-1/2 quart system capacity. This pan requires our 15-401 pickup.

Additional Attributes:

GTIN: 00887753712530
Baffled: Yes
Kicked Out: Yes
Sump Width: 11.5 inches
Sump Depth: 8 inches
Stoke: 4.5 inches
Recommended Accessory 4: 88-400 – Pontiac Oil Pan Gasket
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 1: 15-401 – Pickup with 3/4″ Inlet for M54DS or M10541 Oil Pump
Pickup Included: No
Material: 16 Gauge Steel
Hardware Included: No
Capacity: 6.5 Quart System Capacity
Gasket or Seal Included: No
Finish: Silver Plating
Feature 4: Magnetic Drain Plug
Feature 3: Slosh Baffle
Feature 2: Retains All Stock Dimensions & Capacity
Feature 1: 6.5 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA

PDF:

Pan Install – Standard Part B
