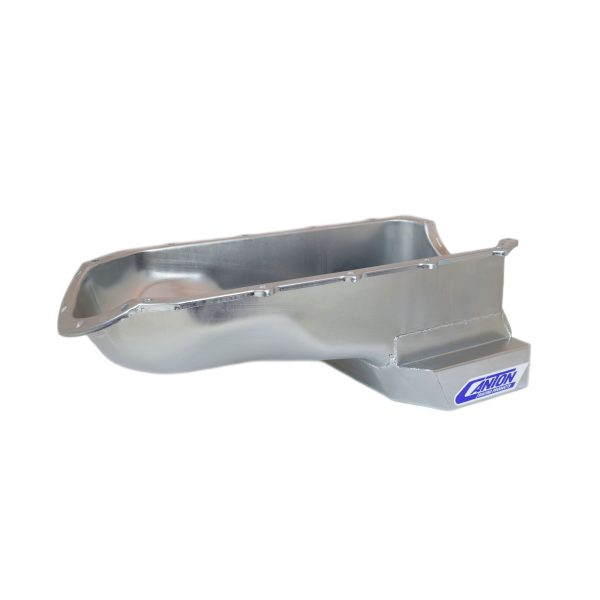

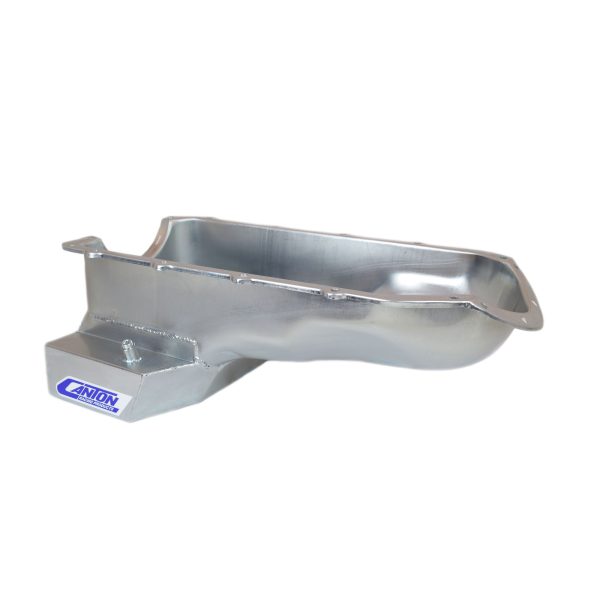

Canton 15-444 Oil Pan For Pontiac Road Race T-Sump Pan

The Canton oil pan # 15-444 is a Pontiac road race T sump oil pan for use in road race competition. Sump is 8? deep by 14?wide by 7 ? long with a 7 quart system capacity Note: Modification maybe required to the right side of the pan with some exhaust systems 3 ? required between right side of stock pan and exhaust to clear T sump without mod. This Pan Requires our 15-401 pickup.

Additional Attributes:

GTIN: 00887753712561
Baffled: Yes
Finish: Silver Plating
Recommended Accessory 1: 15-401 – Pontiac Pickup S.S High Volume 301-455
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Hardware Included: No
Gasket or Seal Included: No
Feature 5: Magnetic Drain Plug
Capacity: 7 Quart System Capacity
Feature 4: Provision For Our Pan Mounted Dipstick
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Triple Trap Door Baffle
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA

PDF:

Pan Install – Standard Part B
