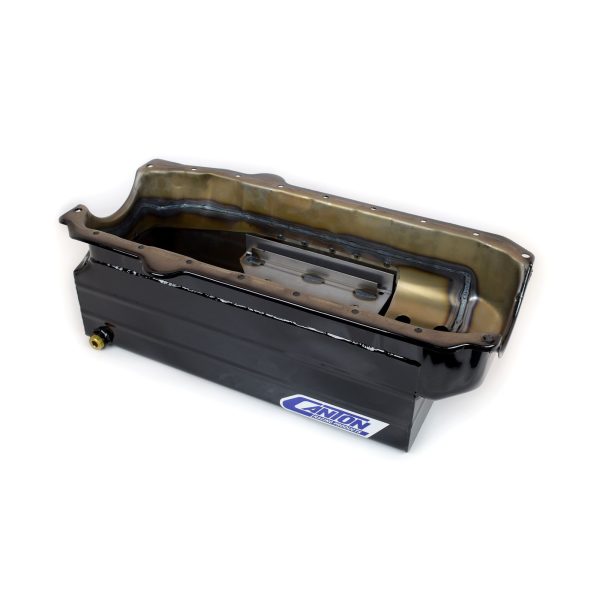

Canton 18-100 Oil Pan Small Block Chevy Pre-1985 Full Length Sump Marine Oil Pan

$570.00
SKU: BGTF-18-100

Canton 18-100 Oil Pan Small Block Chevy Pre-1985 Full Length Sump Marine Oil Pan

  • 8 qt Pan Capacity
  • 14 ga. Steel Construction

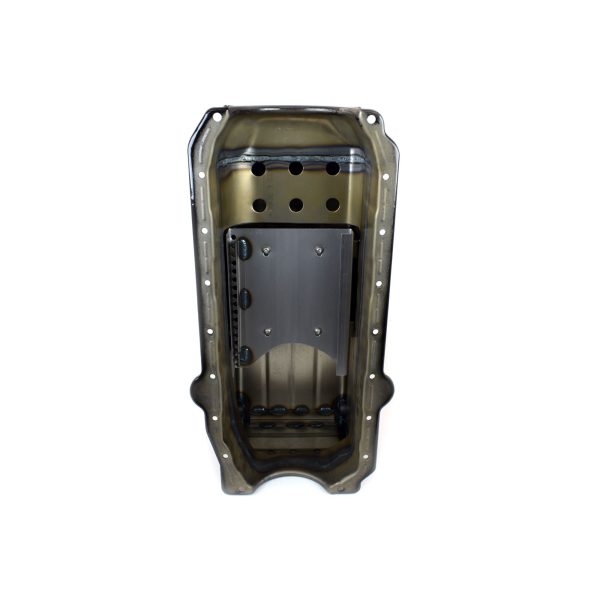

  • Double Trap Door Baffles
  • Removable Windage/Anti-Slosh Baffle
  • 1/2″ NPT Drain Fittings
  • Provision For our Pan Mounted Dipstick
  • Powder Coating & Brass Plugs For Corrosion Protection

This SBC High Capacity Marine Pan is for pre-85 blocks. With a deep 7-1/2" full length sump it holds 8 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our 18-101 pickup.

Additional Attributes:

GTIN: 00887753714282
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Feature 3: Double Trap Door Baffles
Pickup Included: No
Material: 14 Gauge Steel
Kicked Out: No
Hardware Included: No
Gasket or Seal Included: No
Finish: Black Gloss Powdercoat
Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
Feature 6: Provision For our Pan Mounted Dipstick
Feature 5: 1/2″ NPT Drain Fittings
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 2: 14 ga. Steel Construction
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Feature 1: 8 qt Pan Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Capacity: 8 Quart System Capacity
Baffled: Yes
Windage Tray Included: No
Sump Depth: 7.5 inches
Stoke: 3.875 inches
Recommended Accessory 4: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Recommended Accessory 1: 18-101 – Stock Replacement Pickup for SBC Oil Pump

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
