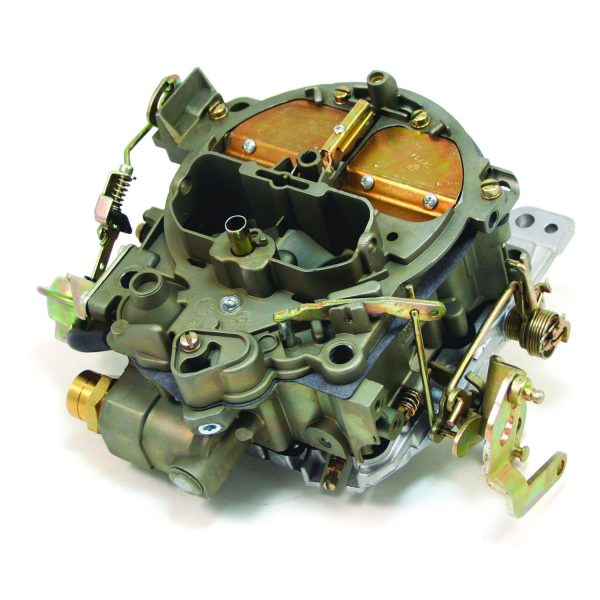

Circle Track Quadrajet Carburetor; 750 cfm; Incl. 0.149 Needle And Seat;
- Built Exclusively For Circle Track Racing
- Extensively Reworked
- Increased Main Well Size
- Balanced To Assure High RPM Fuel Flow
- Instant Throttle Response
$634.99
JET Performance now offers a Quadrajet carburetor built exclusively for circle track racing. The carburetor is extensively reworked by increasing main well size and is balanced to assure high RPM fuel flow. Several circuit modifications are made for a richer fuel curve throughout the entire RPM range, particularly at wide open throttle. Includes a .149 needle and seat to ensure adequate fuel flow. The carburetor is designed for heavily modified 355-406ci small block motors with a single plane intake manifold, headers, 11.5:1 compression ratio and high flowing cylinder heads. Recommended cam specs: Duration at .050 min 250 degrees plus, lift .525 plus.
Additional Attributes:
GTIN: 00064330040907
Prop 65 – Short Label: JET Performance Prop 65 Label.pdf
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Type: Automotive
Usage: Racing
Barrel: Four
CFM: 750
Choke: None
Emission: Without EGR
Finish: OE
Flange: Spread Bore
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
