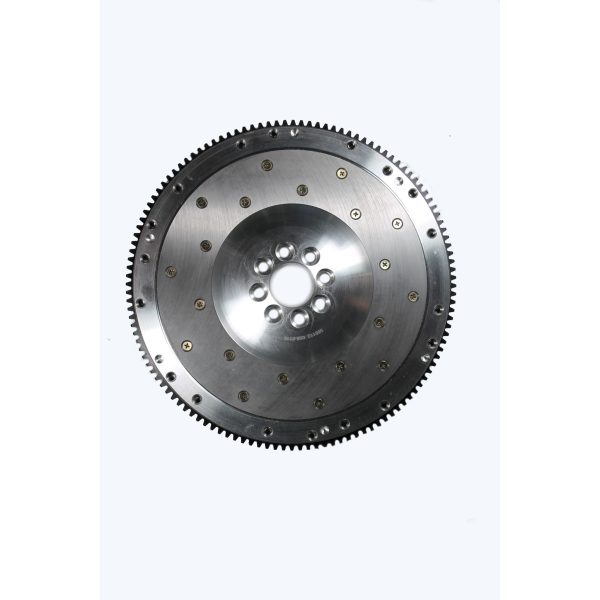

Flywheel Aluminum:1964-95 SBF 289,302,351:15 Lbs:0 Bal:164T

$656.25

SKU: BHGR-563200

McLeod Racing Billet Aluminum flywheels is the best choice for customers that want a dependable good quality Aluminum flywheel. Made from Billet Aluminum 6060-T6 the McLeod Racing flywheels are SFI rated to almost 9000 RPM.

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

Additional Attributes:

GTIN: 00887753012173
Make: Ford
Ring Gear: 164 tooth
Flywheel Material: Aluminum
Weight: 15 Lbs
Clutch Patterns 1: 10In. & 10.5In. Long & 10In. Diaphragm
Clutch Patterns 2: 1986-Up 10.5In. Mustang Diaphragm with Dowel Pins.
Clutch Patterns 3: 11In. Long & Diaphragm
Disc Diameter: 10In., 10.5In., 11In.
Engine: 1964-1995 SBF
Engine Balance: Internal Balance
NOTE 1:: Comes with 28oz & 50oz Bolt on external balance weights.
NOTE 2:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA

PDF:

McLeodProductInstructions
