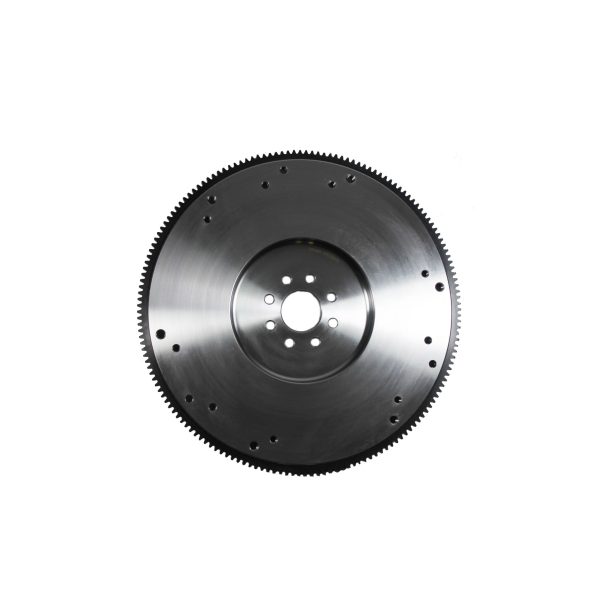

Flywheel: Steel:Ford:1996-04 4.6L,2011-17 3.7L,5.0L:0Bal:20 Lbs 8Blt Crank:164T

$368.75

SKU: BHGR-463458

McLeod Racing Billet Steel flywheels is the best choice for customers that want a dependable good quality steel flywheel. Made from Billet steel the McLeod Racing flywheels are SFI rated to almost 9000 RPM.

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

Additional Attributes:

GTIN: 00887753011893
Make: Ford
Ring Gear: 164 tooth
Flywheel Material: Steel
Weight: 22 Lbs
Clutch Patterns: 10.5In. Mustang Diaphragm 1986-2000 with Dowel Pin Holes
Clutch Pattern 2: 2001.5-2010 11In. Diaphragm with Dowl Pin Hole
Disc Diameter: 10.5In./11In.
Engine: 1996-2017 4.6L/5.0L/5.4L 8 Bolt Crank
Engine 2: 2011-17 3.7L 8 Bolt Crank
NOTE:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
NOTE 2:: This Flywheel will not bolt up to the OEM 2012-Up Pressure Plate with factory 9 bolt pressure plate pattern and 8 mm Dowel Pins. Please call McLeod Tech for recommendation (714) 630-2764.

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA

PDF:

McLeodProductInstructions
