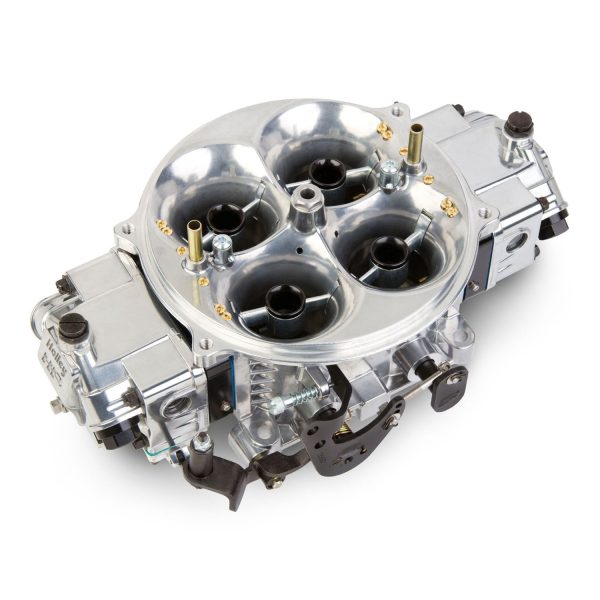

Gen 3 Ultra Dominator® HP Race Carburetor

Gen 3 Ultra Dominator® HP Race Carburetor
$1,933.55
SKU: BBVL-0-80906BK

Gen 3 Ultra Dominator® HP Race Carburetor; 4bbl; 1150cfm; 3 Circuit Metering; 1×4 Gas; Model 4500UHP; Dual Fuel Inlet; No Choke; Shiny w/Black Metering Blocks/Booster Valves;

  • All Aluminum Construction Saves 3.8 lbs. Over Original Models
  • 28% Weight Savings
  • Calibrations For Todays Larger Race Engines and New Fuels
  • Fully Machined From Venturi Throat To Throttle Bore
  • Integrated Idle Bypass Valve Allows For Adjustment Of Idle
  • 12 Hole Billet Booster Superior Atomization/Throttle Response
  • Metering Blocks Feature Improved True Gasket Sealing
  • Dual 50CC Accelerator Pumps Fuel From Idle To Full Throttle
  • Fuel Bowl Provides 20% More Fuel Capacity Controls Slosh
  • Clear Sight Windows On Sides Of Bowl For Fuel Level Adjustments
  • Drain Plug On Bowl Provides Easy Access To Empty Bowl
  • Contoured Hex Head Squirter Screws For Streamlined Airflow

The Gen 3 utilizes high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, 12 hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws Each calibration has been dyno and track tested to deliver proven performance!

Additional Attributes:

GTIN: 00090127684443
Barrel: Four
Billet Color: Shiny with Black Billet
Booster Type: Annular Billet Insert
Carburetor Type: 4500
CFM: 1150
Choke: None
Circuit: 3
Emission: Without EGR
Finish: Shiny
Flange: 4500
Fuel Inlet: Dual
Fuel Type: Gasoline
High Speed Air Bleed: 36
Idle Air Bleed Size: 47
Intermediate Air Bleed: 59
Material: Aluminum
Needle and Seat Size: 120;120
Primary Main Jet: 92
Primary Power Valve: 5.5
Secondary Main Jet: 102
Secondary Pump Nozzle Size: 37
Secondary Type: Mechanical
Supercharged Application: No
Throttle Bore: 2.000 in.
Type: Automotive
Usage: Racing
Venturii Size: 1.830 in.
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
