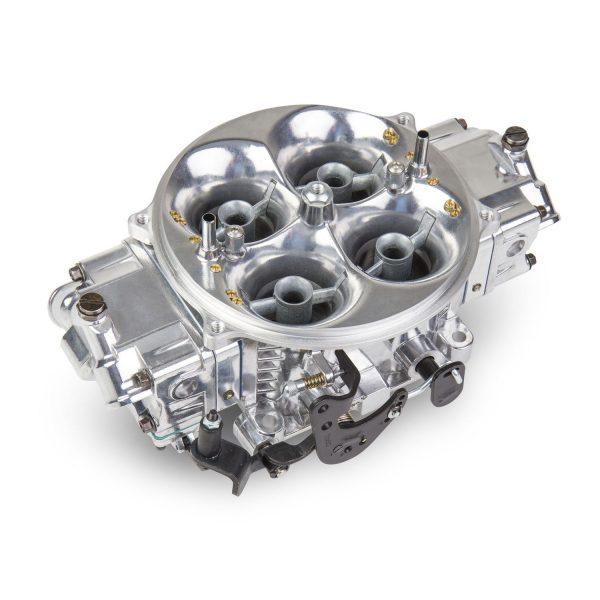

Gen 3 Ultra Dominator® SP Carburetor

Gen 3 Ultra Dominator® SP Carburetor
$1,334.57
SKU: BBVL-0-80689

Gen 3 Ultra Dominator® SP Carburetor; 4bbl; 1050cfm; 3 Circuit Metering; Model 4500; 1×4 Carb Set-Up; Dual 50cc Accelerator Pump; No Choke; Gas; Dual Fuel Inlet; Shiny Finish;

  • All Aluminum Construction Saves 3.8 lbs. Over Original Models
  • 28% Weight Savings
  • Shiny With Billet Aluminum Metering Block and Black Hardware
  • Calibrations Optimized For Todays Race Engines and New Fuels
  • Fully Machined From Venturi Throat To Throttle Bore For Perf
  • Annular Booster Deliver Excellent Signal and Throttle Response
  • Screw In Air Bleeds Offer Precise Tuning Capabilities
  • Metering Blocks Feature Improved True Gasket Sealing
  • Dual 50CC Accelerator Pumps Fuel From Idle To Full Throttle
  • 4 Corner Idle Allows You To Precisely Control Your Idle System
  • Clear Sight Windows On Fuel Inlet Side For Fuel Level Adjustment
  • Notched Float and Jet Extension Are Factory Installed

Holley engineers have taken the state-of-the-art Gen 3 Ultra carburetors and created a budget friendly version that is perfect for street/strip applications as well as all out bracket or sportsman drag cars. The new Holley SP Dominator carburetors feature the patent pending Gen 3 main–body which is 5/16" taller than the previous generation! This new height allowed for larger radius air entries to deliver smoother flow that equates to improved throttle response and consistency. An extended air cleaner flange is incorporated for easy air scoop attachment when using the available air scoop adapter. Other features include all aluminum construction, tunable billet metering blocks, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno and track tested to deliver proven performance!

Additional Attributes:

GTIN: 00090127725252
Barrel: Four
Billet Color: Clear SP Dominator
Carburetor Type: 4500
CFM: 1050
Choke: None
Circuit: 3
Emission: Without EGR
Finish: Shiny
Flange: 4500
Fuel Inlet: Dual
Fuel Type: Gasoline
High Speed Air Bleed: 40
Idle Air Bleed Size: 53
Intermediate Air Bleed: 63
Material: Aluminum
Primary Main Jet: 84
Primary Power Valve: 5.5
Secondary Main Jet: 94
Secondary Pump Nozzle Size: 35
Secondary Type: Mechanical
Supercharged Application: No
Throttle Bore: 2.000 in.
Type: Automotive
Usage: Racing
Venturii Size: 1.690 in.
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each:
Package UOM:
