High Pressure Fuel Pump

High Pressure Fuel Pump
$668.59
SKU: HJQF-MS100211

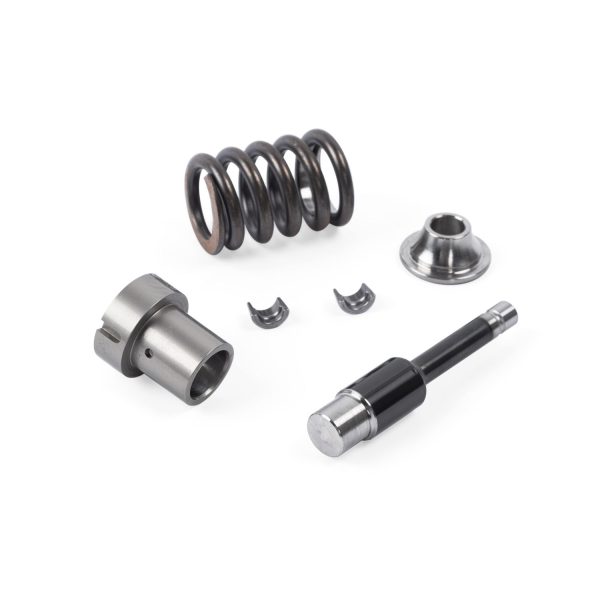

High Pressure Fuel Pump; APR; Larger Bore; Larger Piston; Rebuild Pump; New Spring; Bearing-Grade Stainless Steel; DLC;

  • Increases The Volume Of Fuel Displaced By The HPFP By 37 Percent
  • 38 AWHP/50 AWFTLS; B9 2.9T E85 Stage 1 vs 1 Plus w/ HPFP
  • Maintains Higher Pressures Under Demanding Situations
  • Ideal For High Output Race Cars And Track Use
  • Fully Machine Tested And Broken In Before Shipping
  • Rebuild Of Your Existing Pump
  • Upgraded And Weight Matched Spring
  • Titanium Retainer
  • DLC Coated Piston
  • Heat-Treated Bearing-Grade Stainless Steel Material
  • 0.00004 in. Dimensional Tolerances
  • 0.00005 in. Geometrical Tolerances

The APR High Pressure Fuel Pump (HPFP) increases maximum volume of fuel the HPFP can deliver by 37% over stock! In doing so, the direct injection fueling system is capable of satisfying fueling requirements set forth by high horsepower setups. This is accomplished by increasing the displacement of the pump using high quality components to exacting tolerances. On the B9 2.9T we achieved an additional 37 AWHP and 50 AWFTLBS over our Stage 1 (E85) ECU Upgrade by adding the pump and running our Stage 1+ (E85) ECU Upgrade! How the direct injection system works: A low pressure fuel pump (LPFP) in the fuel tank delivers fuel to the high pressure fuel pump (HPFP) at roughly 4 to 6 bar. Fuel pressure is then bumped up to a maximum of 200 bar, depending on factory parts, with the HPFP. Finally, high pressure fuel is delivered to the injectors, which spray directly into the cylinders. The problem: The volume of fuel the HPFP pump can displace is directly tied to the displacement of the pump (Internal bore size, and camshaft dictated stroke), and engine speed. The pump is driven off of a lobe on the camshaft. Larger turbocharger systems, and ethanol usage are capable of taxing this system, especially in the mid to lower RPM range where fuel volume is lower. The APR solution: We dramatically increase the volume of fuel the HPFP can displace at every RPM by increasing the displacement of the HPFP. This is accomplished by increasing the bore diameter of the pumps internal pressurizing cylinder. Its important to understand, despite the name, a HPFP upgrade is not necessary designed to increase the engines fuel rail pressure. The primary goal is to increase the volume of fuel available, which will keep fuel pressure steady even in the most demanding of situations! High quality components and extreme tolerances: The HPFP internals must be machined to extreme tolerances and installed in a clean environment or the pump can easily fail.

Additional Attributes:

GTIN: 00810009933335
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each:
Package UOM:
