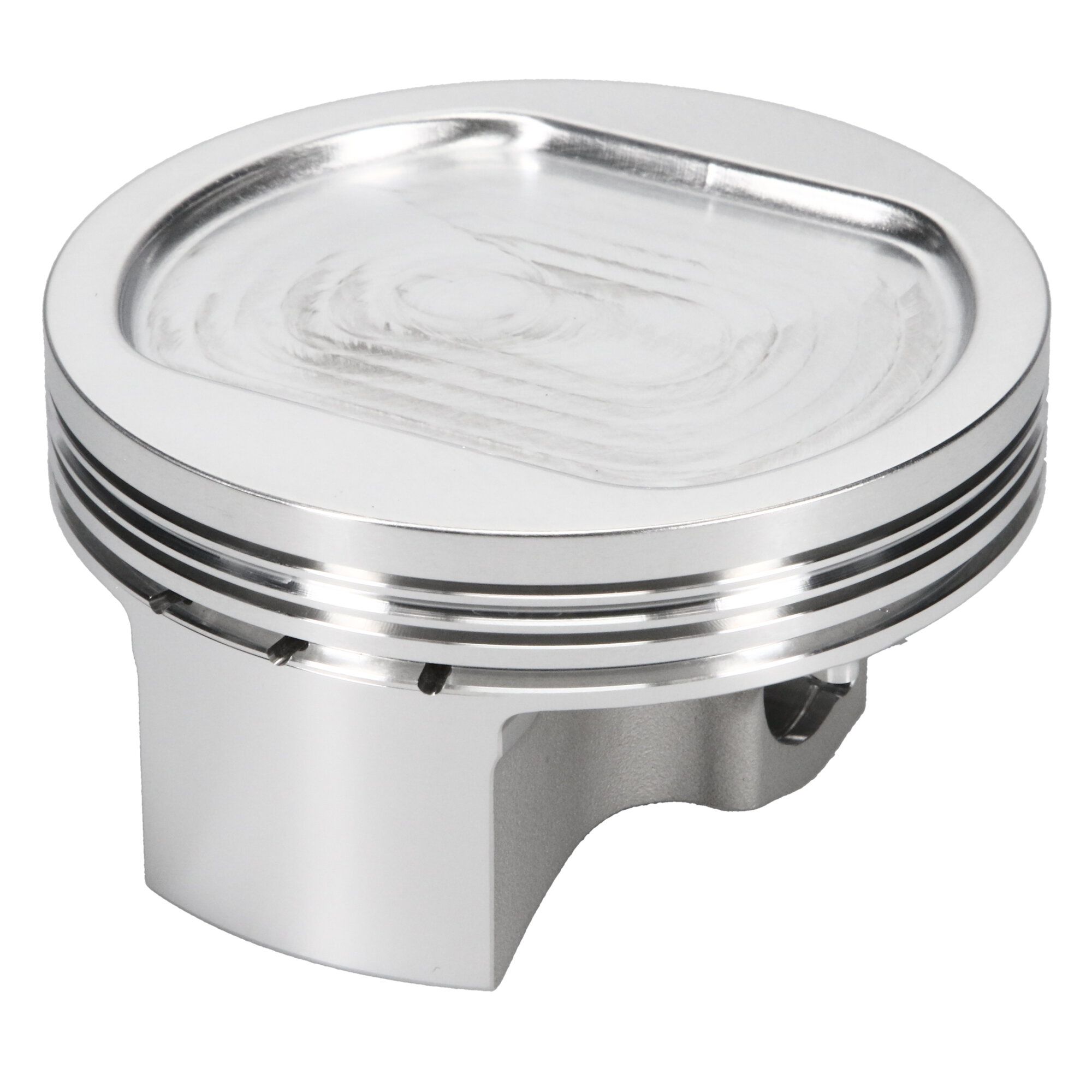

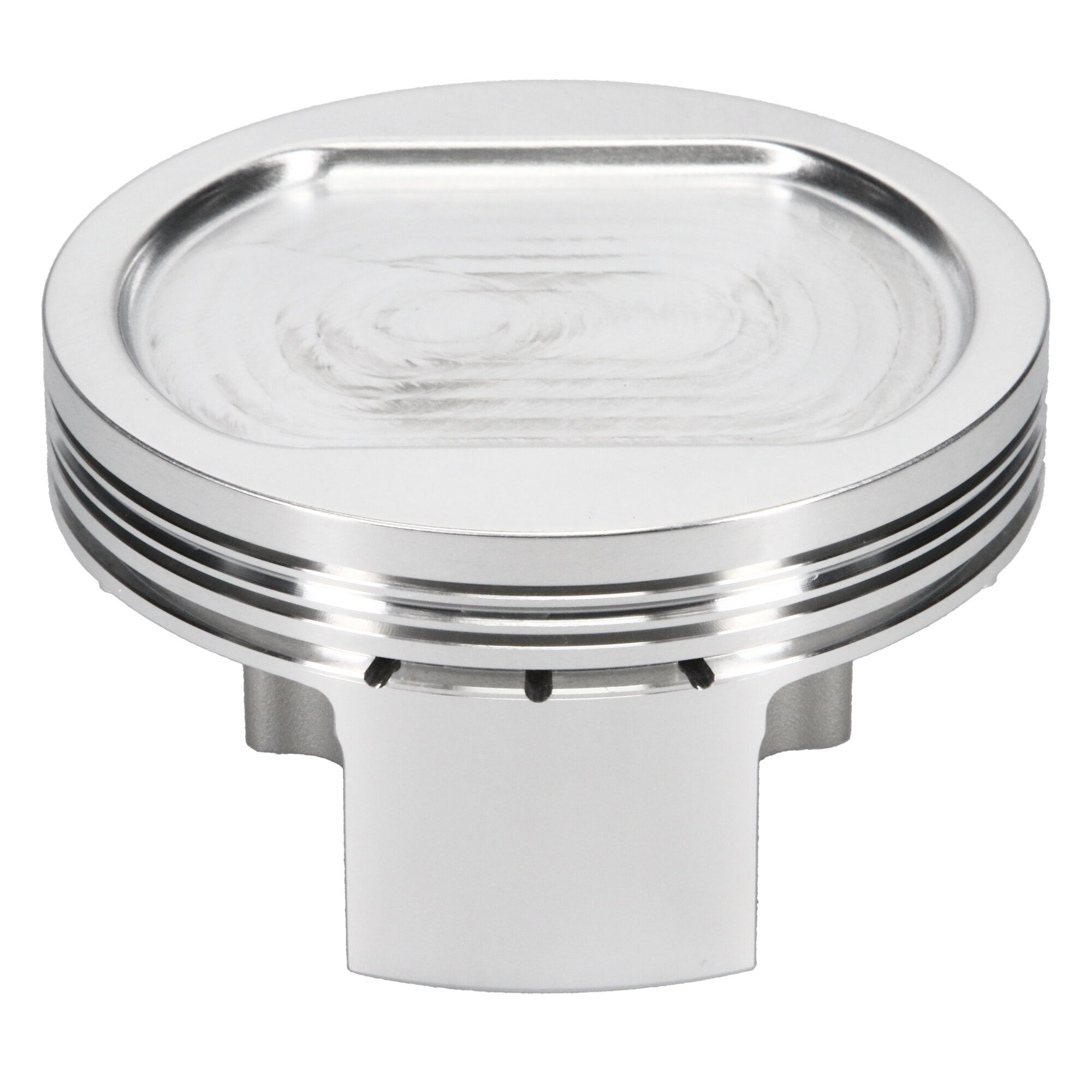

JE, Arctic Cat, 1000i Wild Cat, Prowler / TRV 1000, 9.50:1, 92.00 mm Bore, Single Piston
$251.50
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564195746
Add-On: JG1001-3622
Add-On: 787-2050-16-93C
Add-On: 787-050-MW
Bore Diameter: 92.00
Cylinder Head: ARCTIC CAT
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 9.50:1
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 293
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.050
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.787
Piston Pin Wall Thickness: 0.160
Piston Volume: -12.1
Product Market: UTV
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Extened Information:
Life Cycle Status: Available To Order
Emissions : Electronically Announced
Packaging:
Quantity of Each: 1
Package UOM: EA
