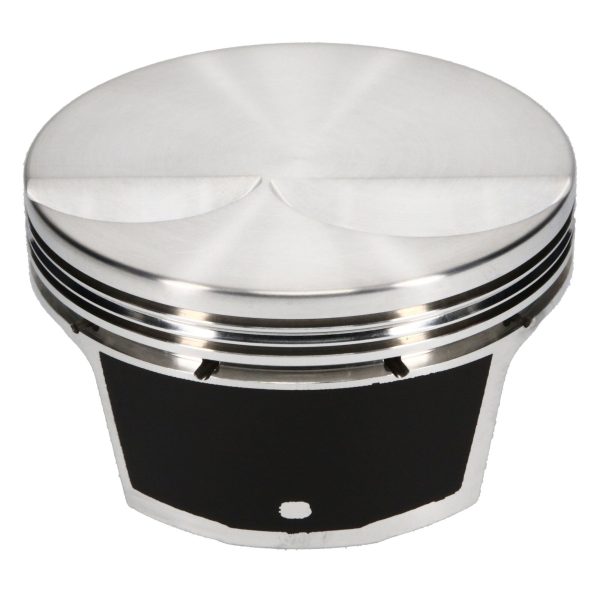

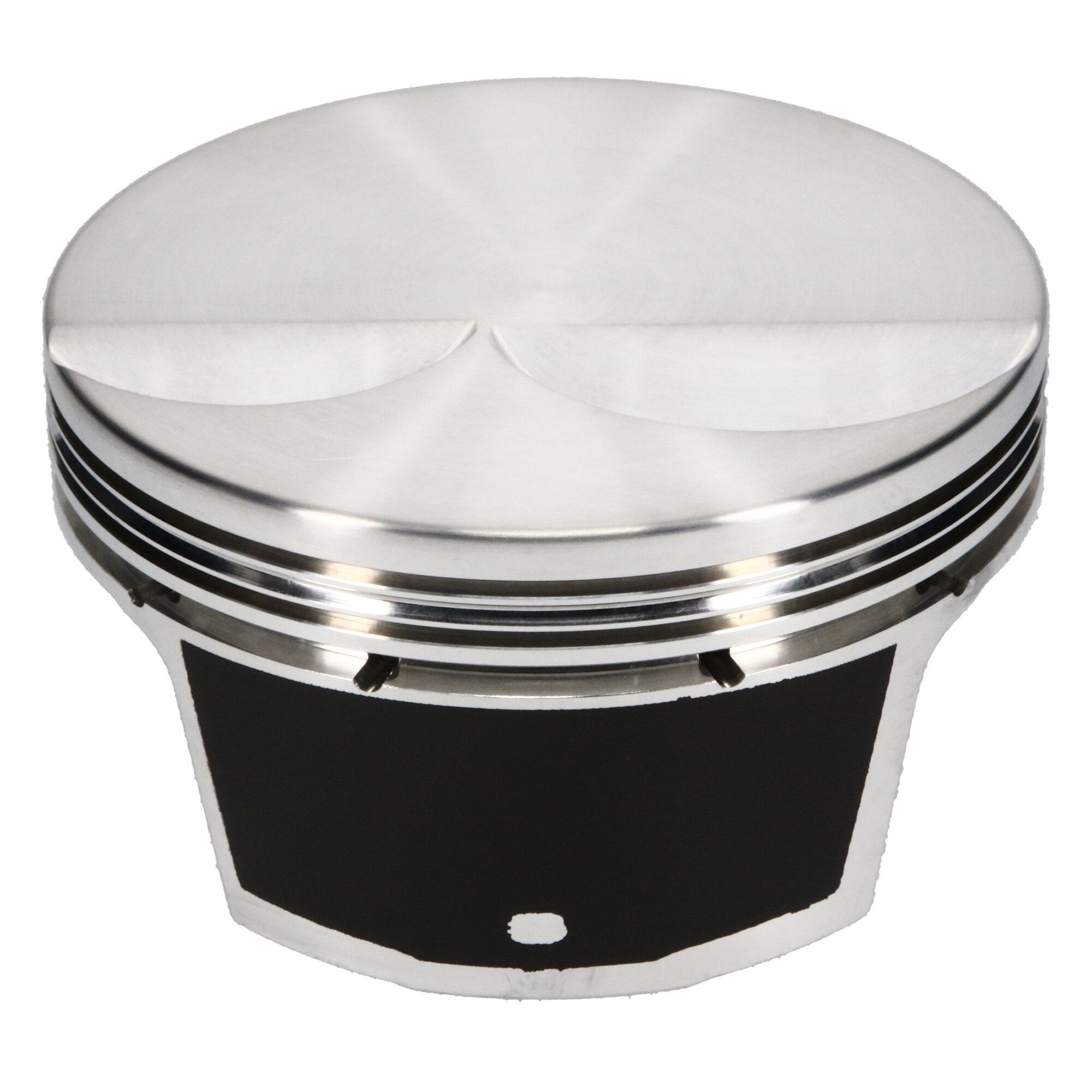

JE, Chevrolet, LS Gen III/IV, 3.905 in. Bore, 1.340 CD, Flat Top, Left Piston
$109.20
JE Pistons LS1 series pistons utilize dedicated Forged Side Relief (FSR) forgings specifically designed for the demands of LS series engines. They are lightweight, extremely durable, and machined for modern 1.5mm, 1.5mm, 3.0mm performance ring sets.
Additional Attributes:
GTIN: 00193564200754
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.06
Add-On: J68008-3900-3
Add-On: 945-2250-15-51C
Add-On: 945-073-MW
Bore Diameter: 3.905
Compression Height: 1.340
Cylinder Head: LSX/L92 12 DEG
Engine: CHEVROLET LS GEN III/IV
Forging Type: FSR
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.1175
Out of Stock Message: Call for Availability
Piston Avg Wt: 436
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.945
Piston Pin Wall Thickness: 0.150
Piston Volume: -2
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
