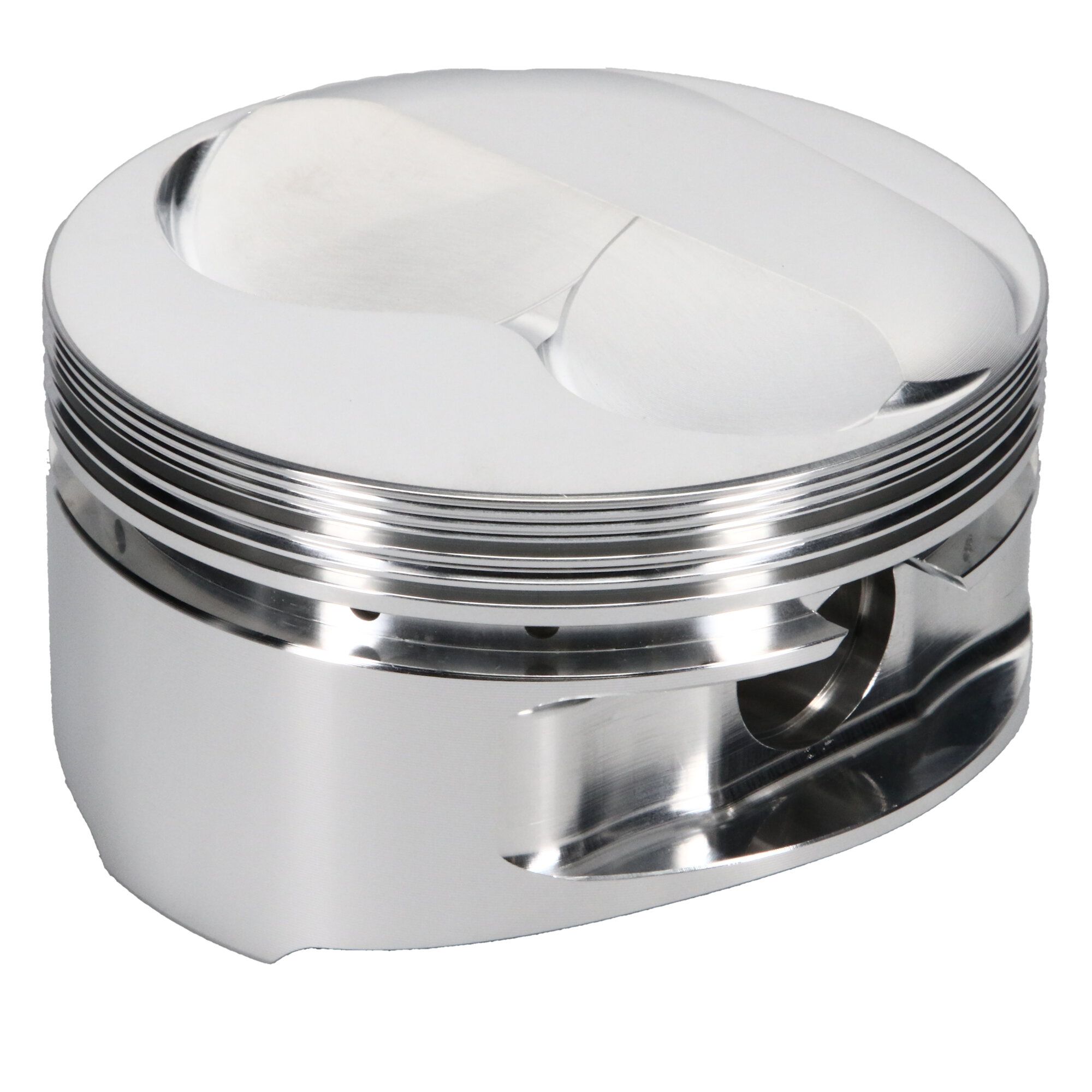

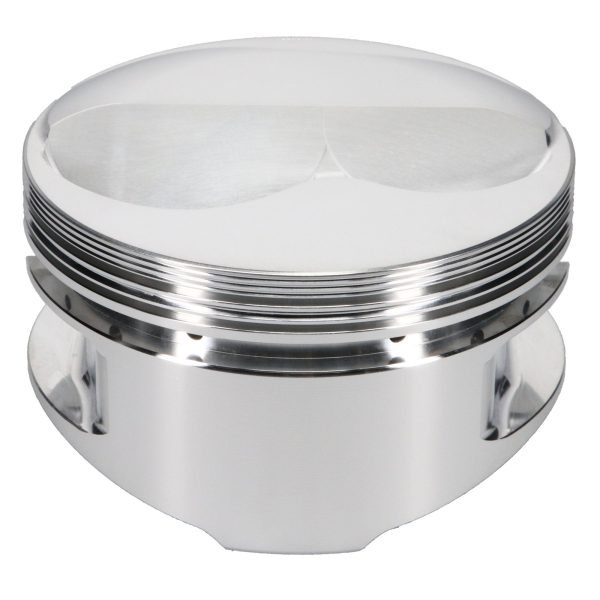

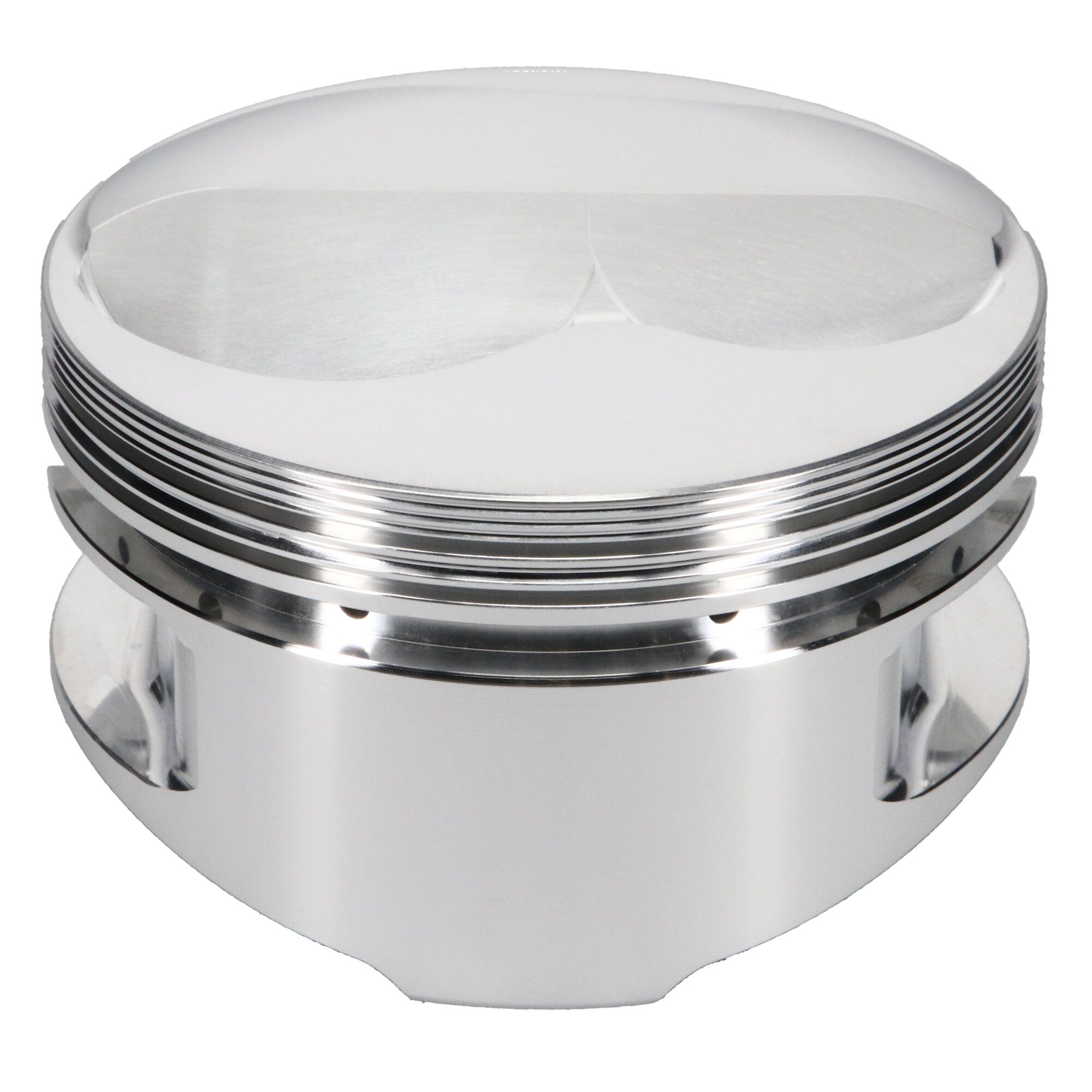

JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.250 CD, Dome, Right Piston
$152.49
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564187703
Top Compression Ring Thickness: 0.064
Compression Height: 1.250
Cylinder Head: CHEVROLET 23 DEG 20/30
Engine: SMALL BLOCK CHEVROLET
Forging Type: Round
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.218
Out of Stock Message: Call for Availability
Piston Avg Wt: 503
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.950
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Add-On: J100F8-4030-5
Add-On: 927-2950-15-51S
Add-On: 927-042-CS
Bore Diameter: 4.030
Piston Pin Wall Thickness: 0.150
Piston Volume: 14
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.064
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
