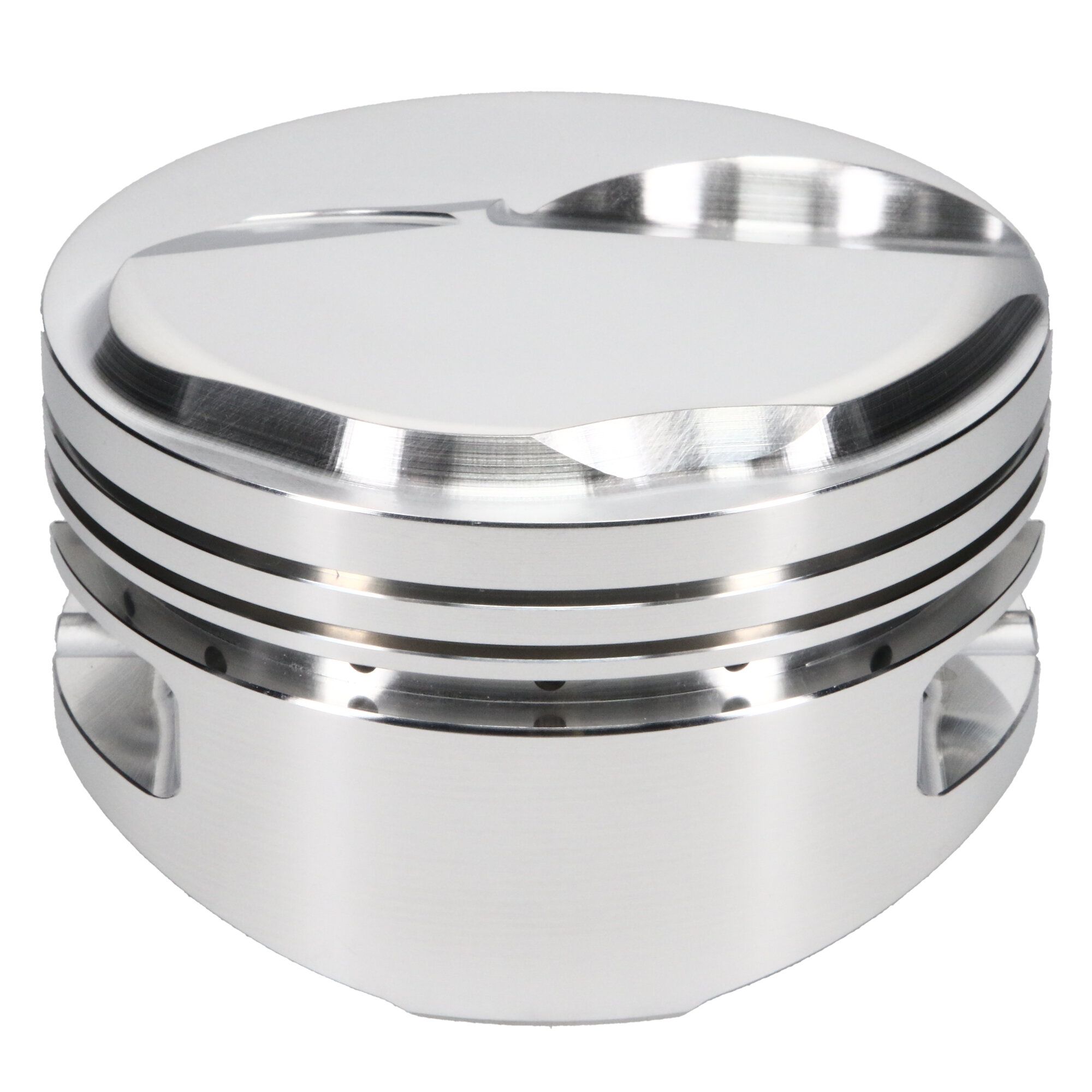

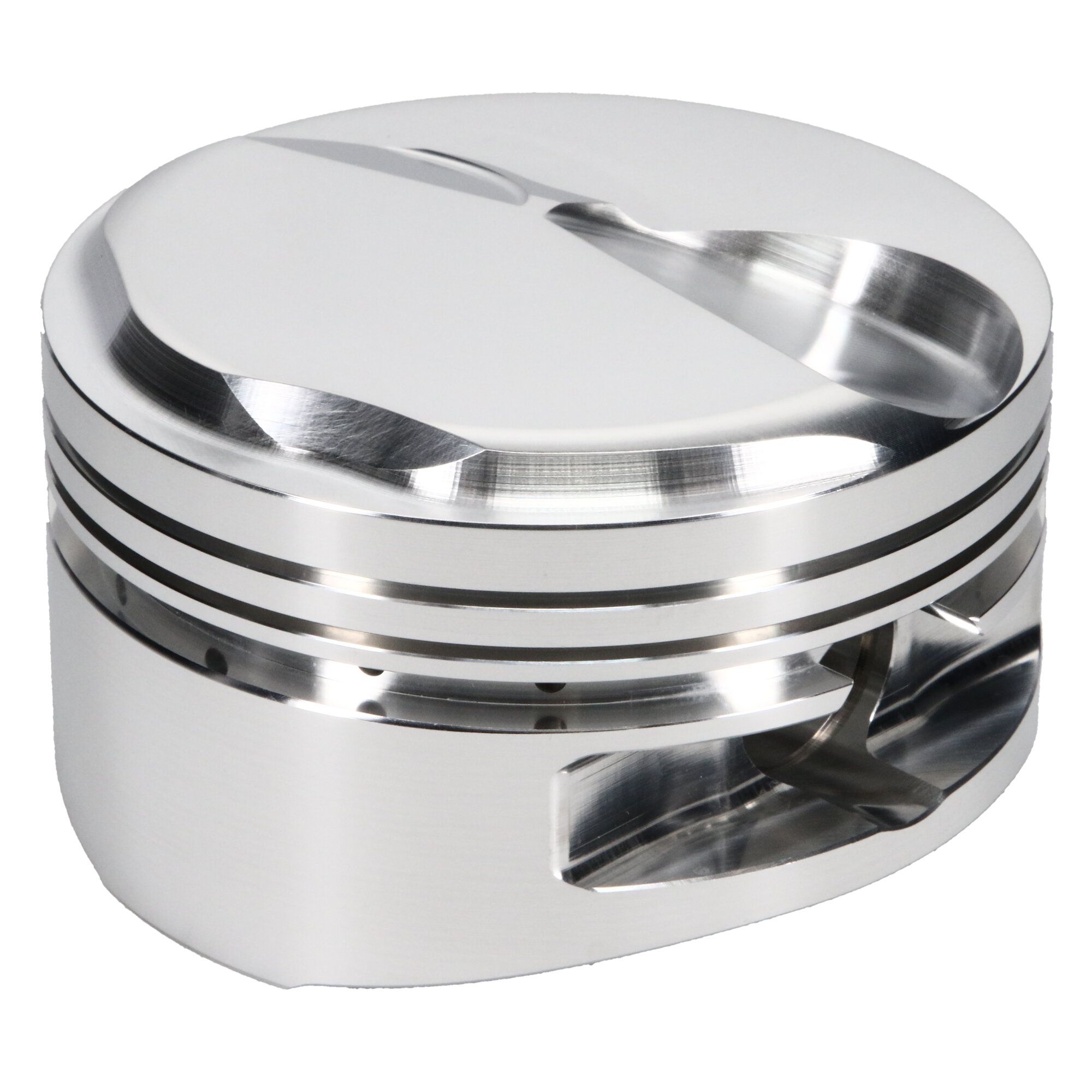

JE, Chevrolet, Big Block Chevrolet, 4.500 in. Bore, 1.520 CD, Dome, Right Piston
$163.31
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564196859
Compression Height: 1.520
Cylinder Head: OPEN CHAMBER
Engine: BIG BLOCK CHEVY
Forging Type: Round
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.188
Out of Stock Message: Call for Availability
Piston Avg Wt: 728
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.930
Piston Pin Outside Diameter: 0.990
Piston Pin Wall Thickness: 0.200
Piston Volume: 25.3
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.075
Add-On: J890F8-4500-5
Add-On: 990-2930-20-TSS
Add-On: 990-042-CS
Bore Diameter: 4.500
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
