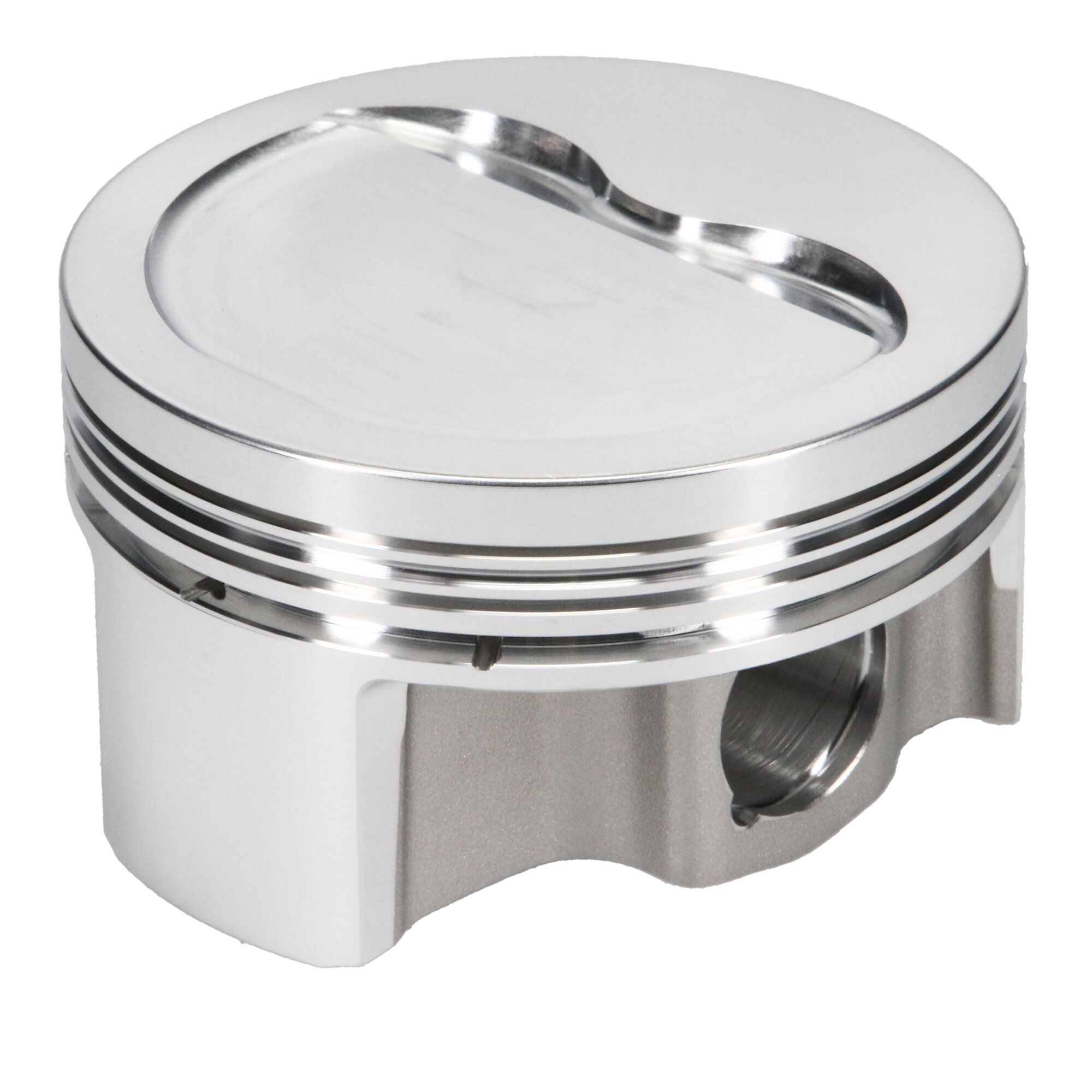

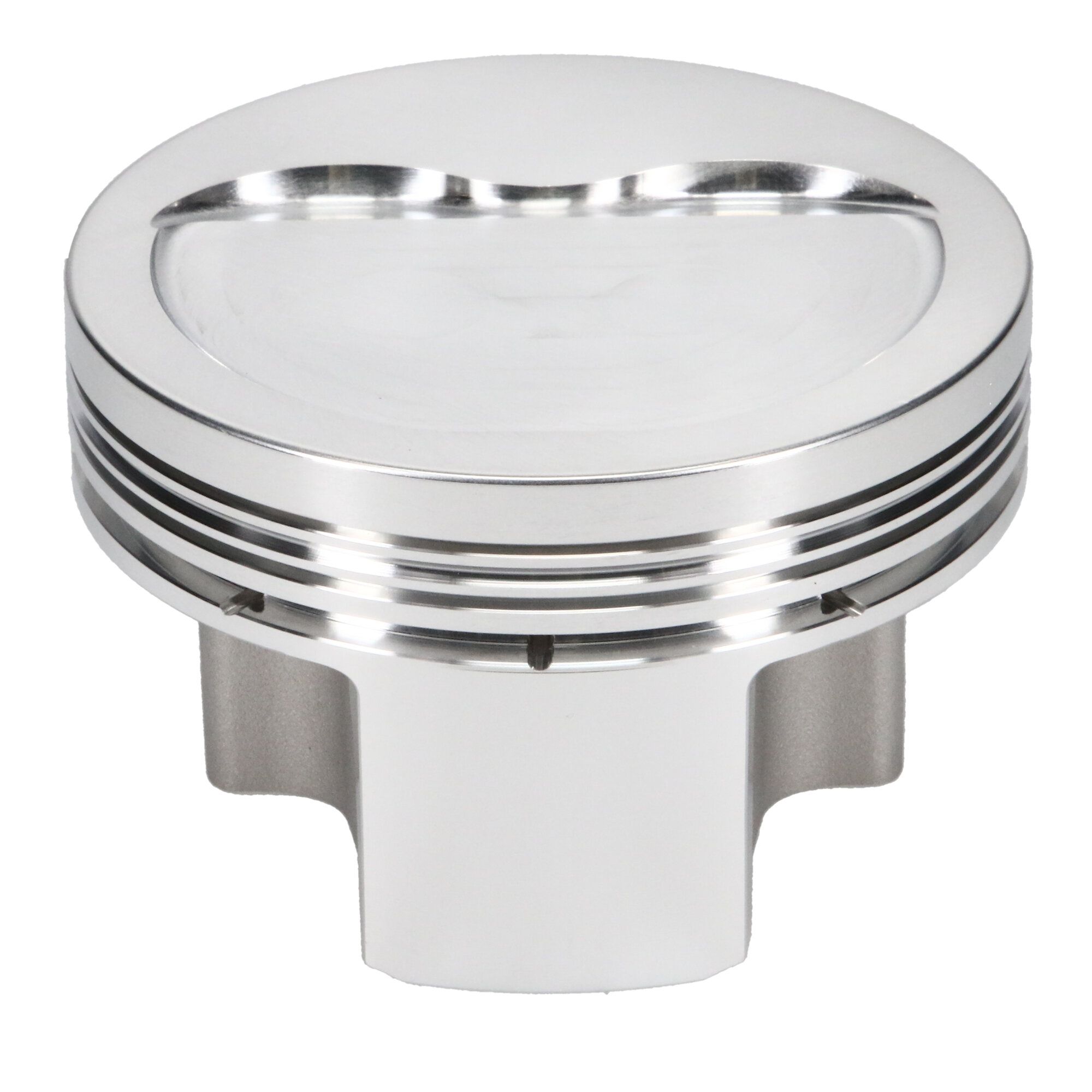

JE, Fiat, 176A, 3.209 in. Bore, 7.80:1, Inverted Dome/Dish, Single Piston
$220.05
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564011848
Add-On: JG1001-3209
Add-On: 866-2250-15-51C
Add-On: 866-063-MW
Bore Diameter: 81.50
Compression Height: 1.344
Cylinder Head: 176A
Engine: 176A
Forging Type: FSR
Industry: Automotive
Make: FIAT
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 297
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.150
Piston Volume: -3.7
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
