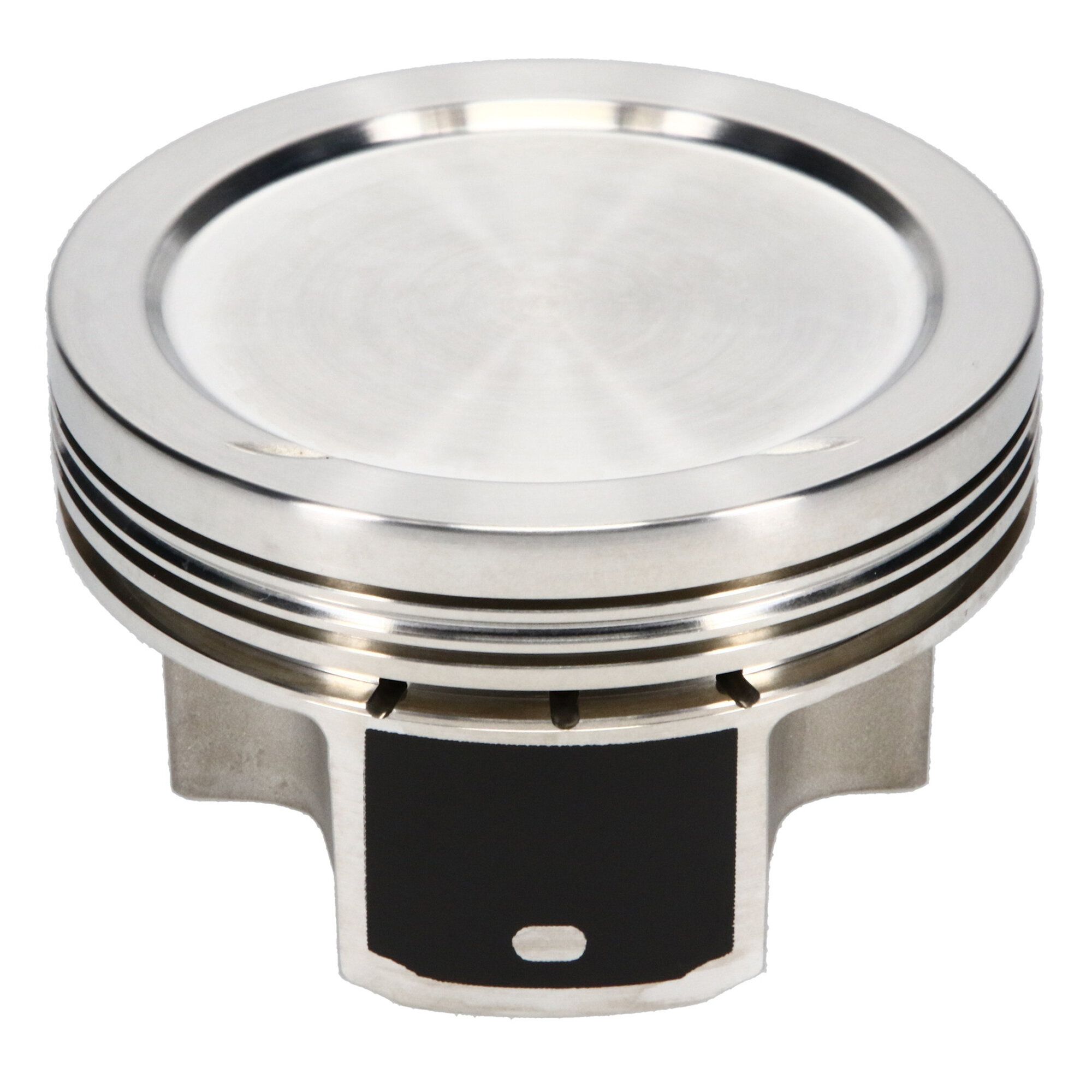

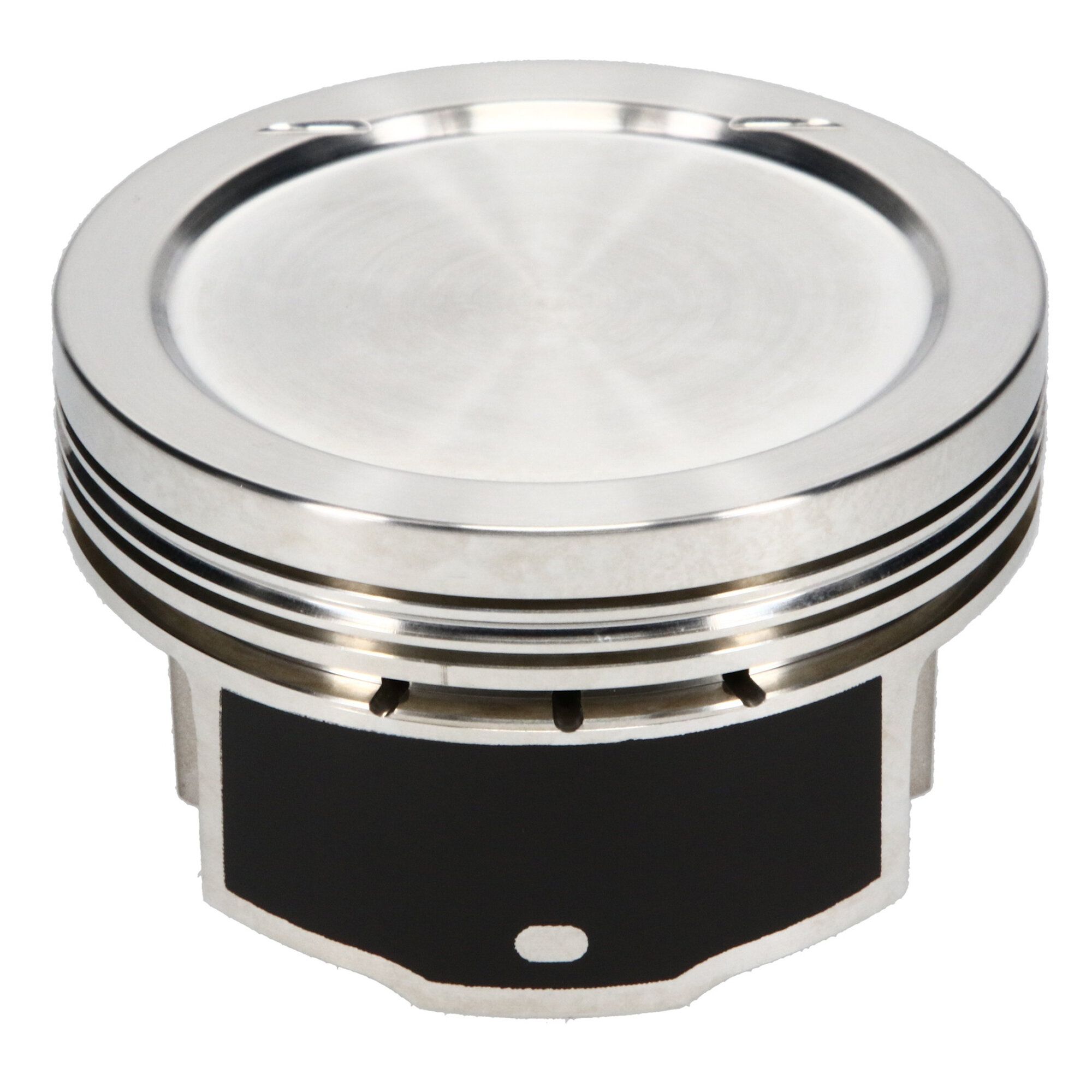

JE, Ford, 3.307 in. Bore, Single

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564012463
Add-On: JG1001-3307
Add-On: 827-2250-15-51C
Add-On: 827-050-MW
Bore Diameter: 84.00
Compression Height: 1.118
Cylinder Head: FORD ST 2.5
Engine: 2.5L ST
Forging Type: FSR
Industry: Automotive
Make: FORD
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 289
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.827
Piston Pin Wall Thickness: 0.150
Piston Volume: -7.2
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
