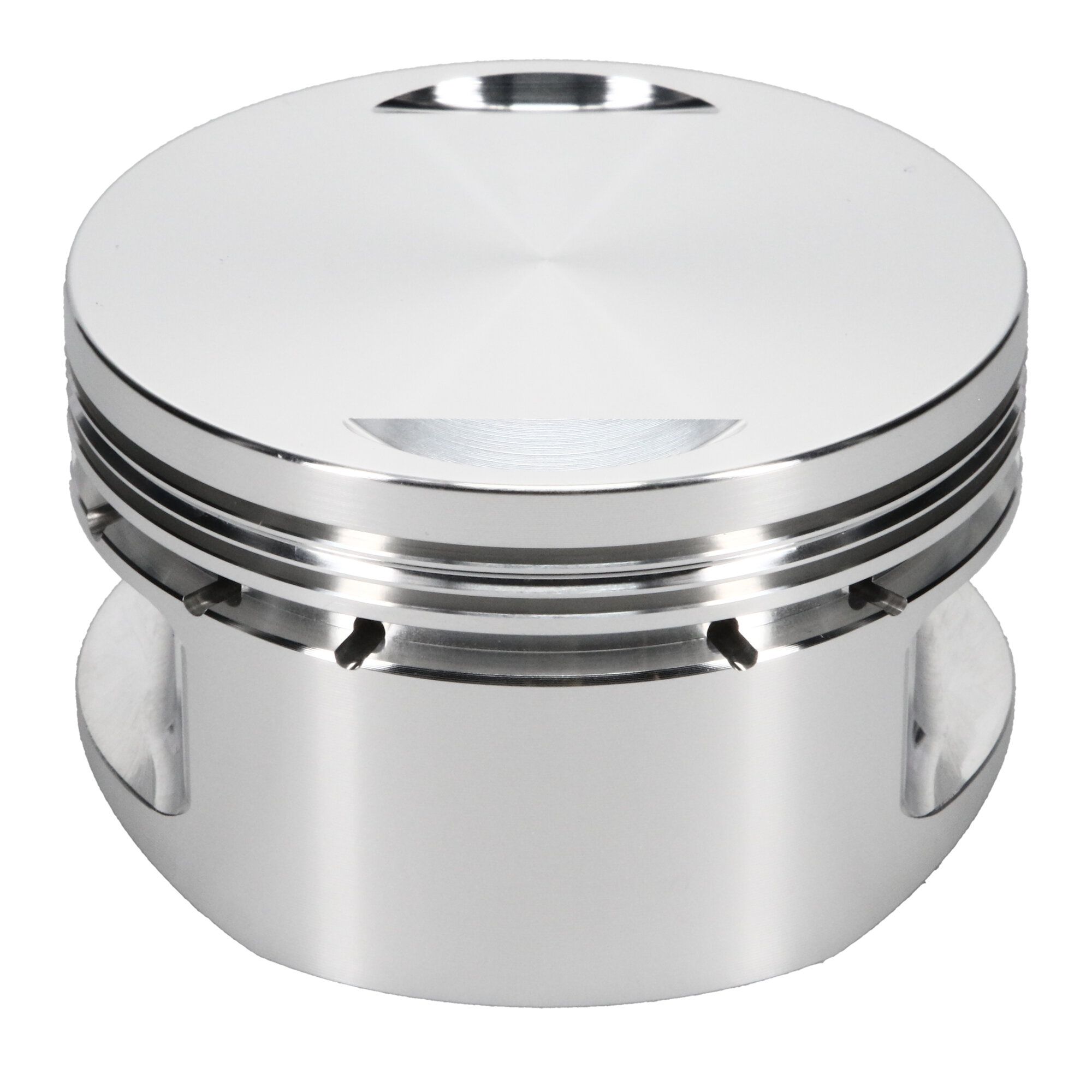

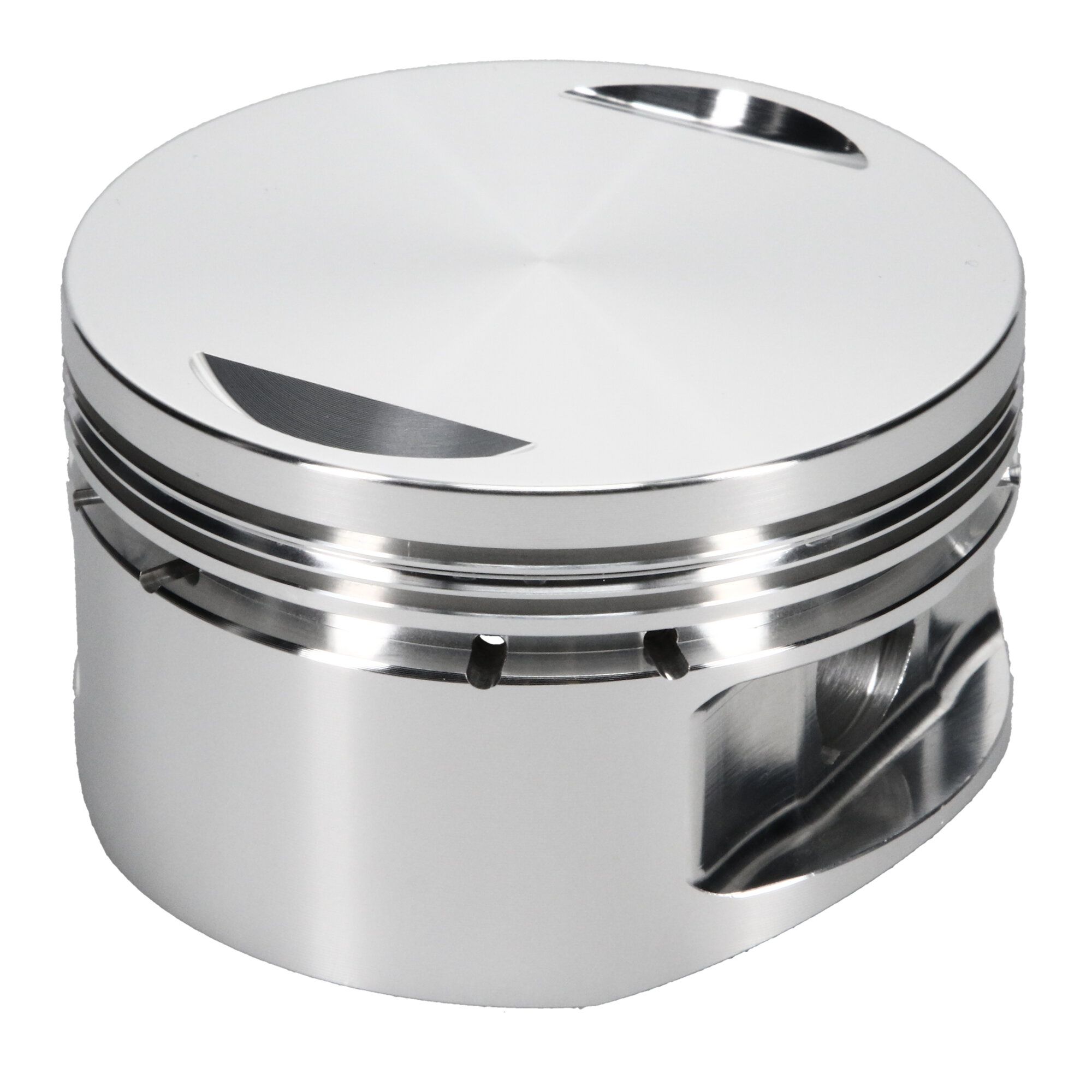

JE, Harley-Davidson, 1200 Sportster, 9.00:1, 3.518 in. Bore, Single Piston
$244.94
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564043245
Cylinder Head: SPORTSTER
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 9.00:1
Oil Ring Thickness: 0.159
Out of Stock Message: Call for Availability
Piston Avg Wt: 350
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.791
Piston Pin Wall Thickness: 0.140
Product Market: V-Twin
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.064
Add-On: J140F1-3518
Add-On: 791-2500-14-51C
Add-On: 787-050-MW
Bore Diameter: 89.36
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
