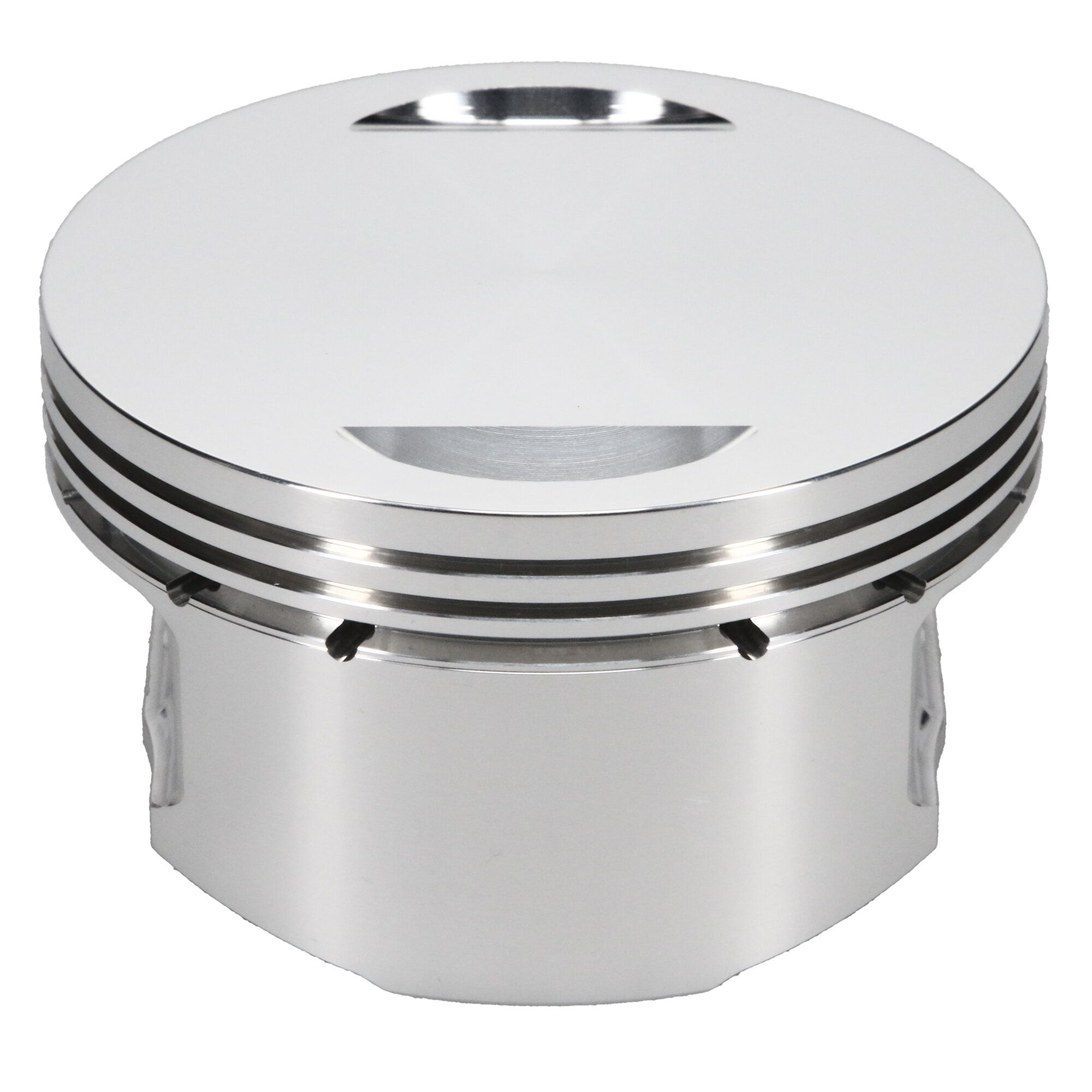

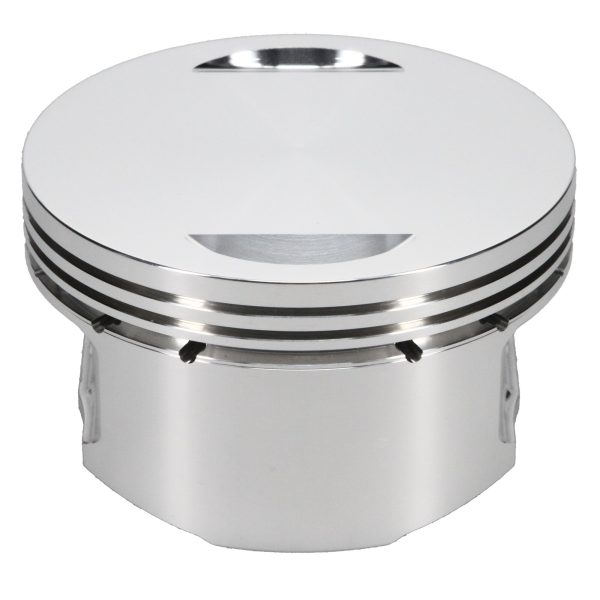

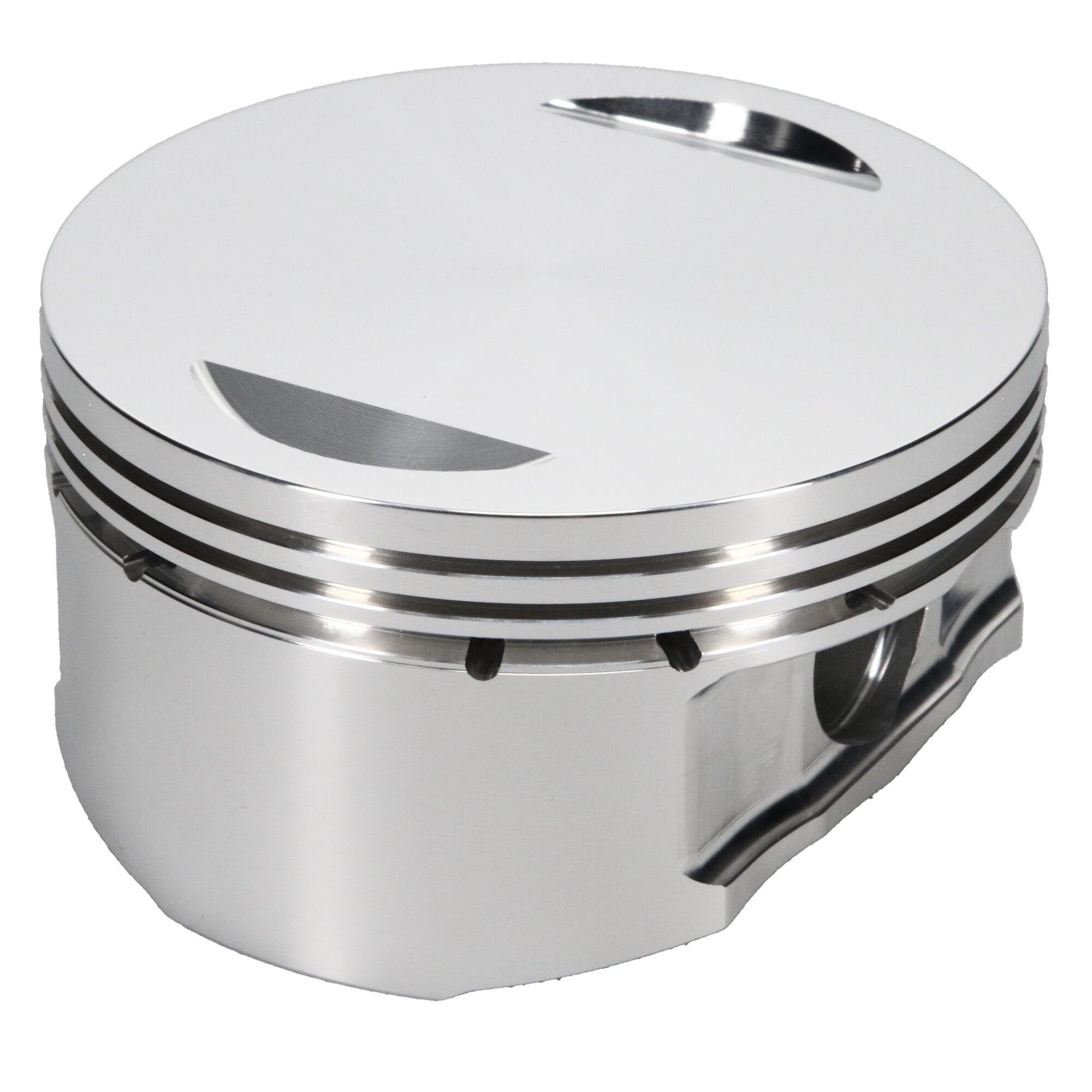

JE, Harley-Davidson, Twin Cam 96, 9.30:1, 3.755 in. Bore, Single Piston
$242.15
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564201416
Add-On: XK3755
Add-On: 927-2500-15-51C
Add-On: 927-073-MW
Bore Diameter: 95.38
Cylinder Head: HARLEY
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 9.30:1
Oil Ring Thickness: 0.0995
Out of Stock Message: Call for Availability
Piston Avg Wt: 336
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: -0.9
Product Market: V-Twin
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.06
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
