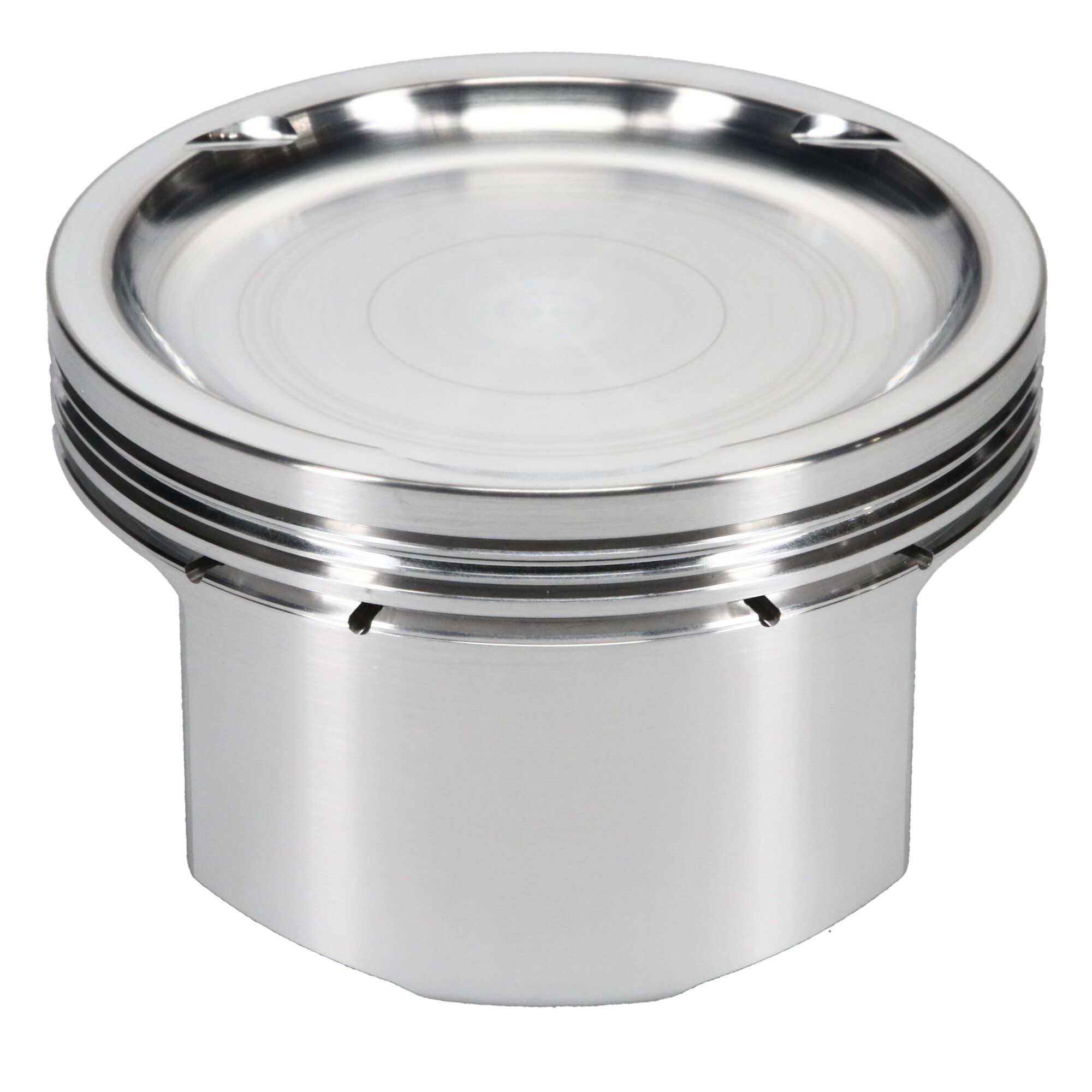

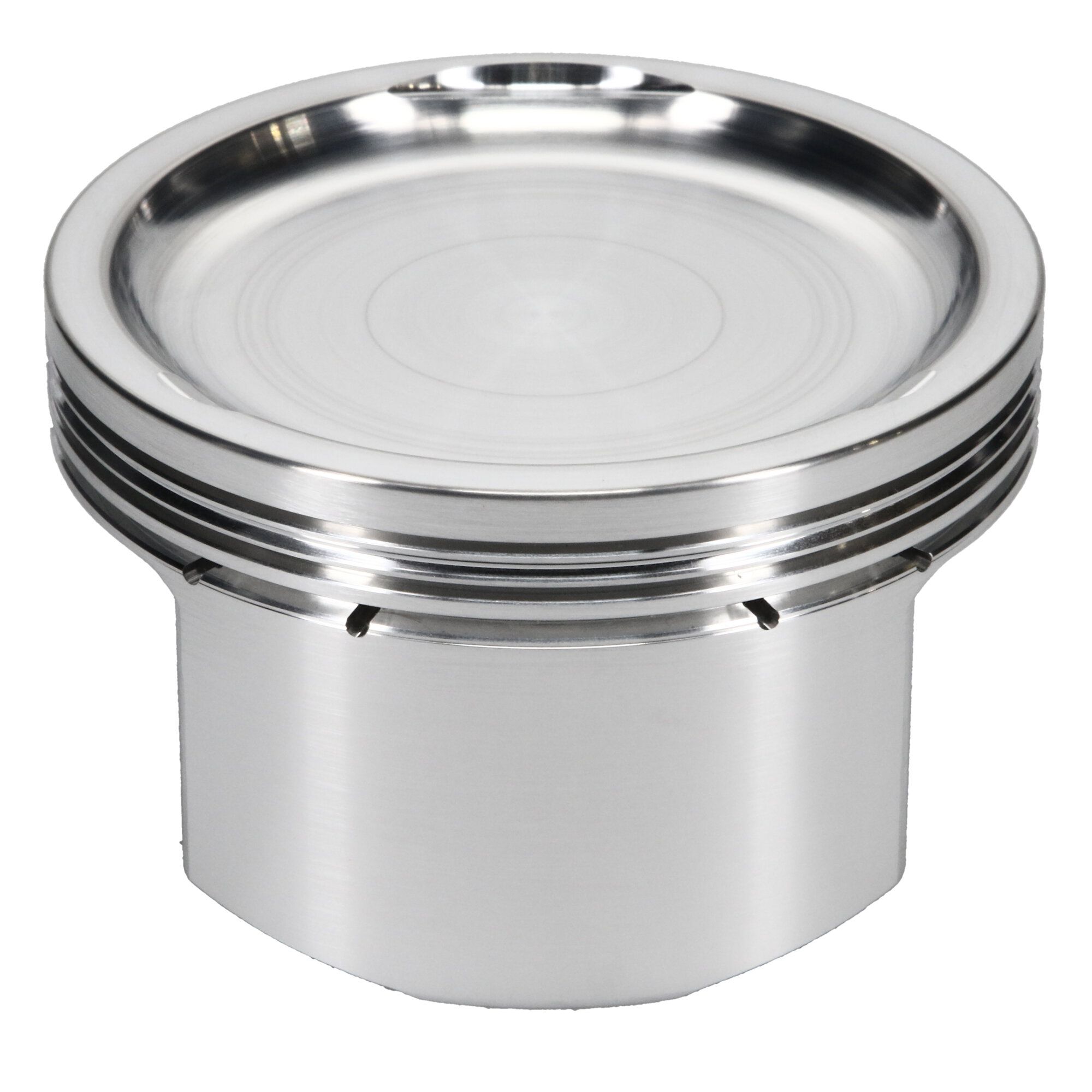

JE, Honda, VTX 1800, 11.00:1, 100.0 mm Bore, Single Piston
$251.46
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564203229
Add-On: XS10100
Add-On: 945-2500-14-51C
Add-On: 945-073-MW
Bore Diameter: 101.00
Cylinder Head: VTX 1800 3V
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 11.00:1
Oil Ring Thickness: 0.0795
Out of Stock Message: Call for Availability
Piston Avg Wt: 392
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.945
Piston Pin Wall Thickness: 0.140
Piston Volume: 3.5
Product Market: Street
Product Market: V-Twin
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
