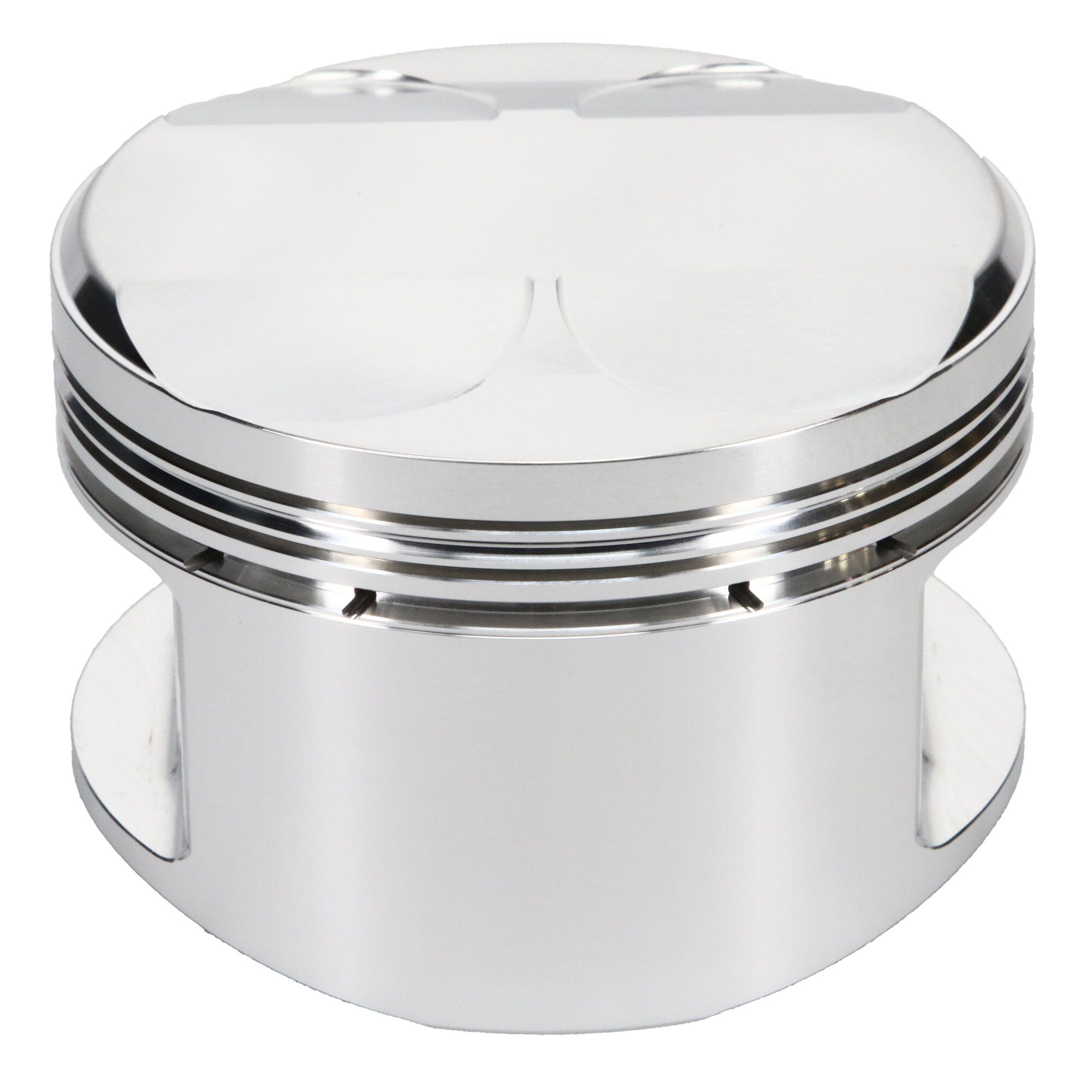

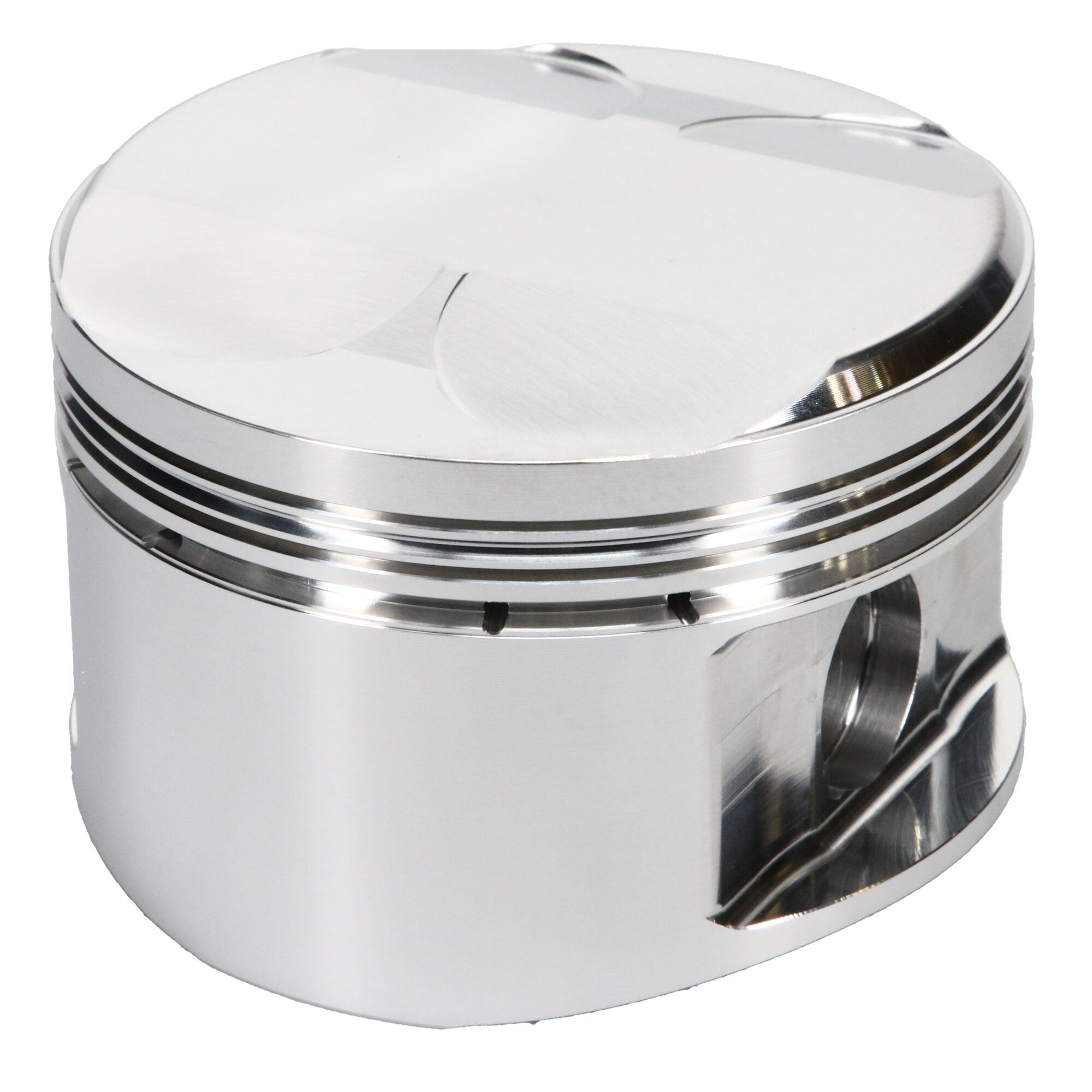

JE, Nissan, TB48DE, 3.957 in. Bore, 8.50:1, Inverted Dome/Dish, Single Piston
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564024817
Top Compression Ring Thickness: 0.04
Add-On: JG1001-3957
Add-On: 905-2500-15-51C
Add-On: 905-073-MW
Bore Diameter: 100.50
Compression Height: 1.465
Cylinder Head: TB48DE
Engine: TB48DE
Forging Type: Round
Industry: Automotive
Make: NISSAN
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 461
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.905
Piston Pin Wall Thickness: 0.150
Piston Volume: -8.8
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
