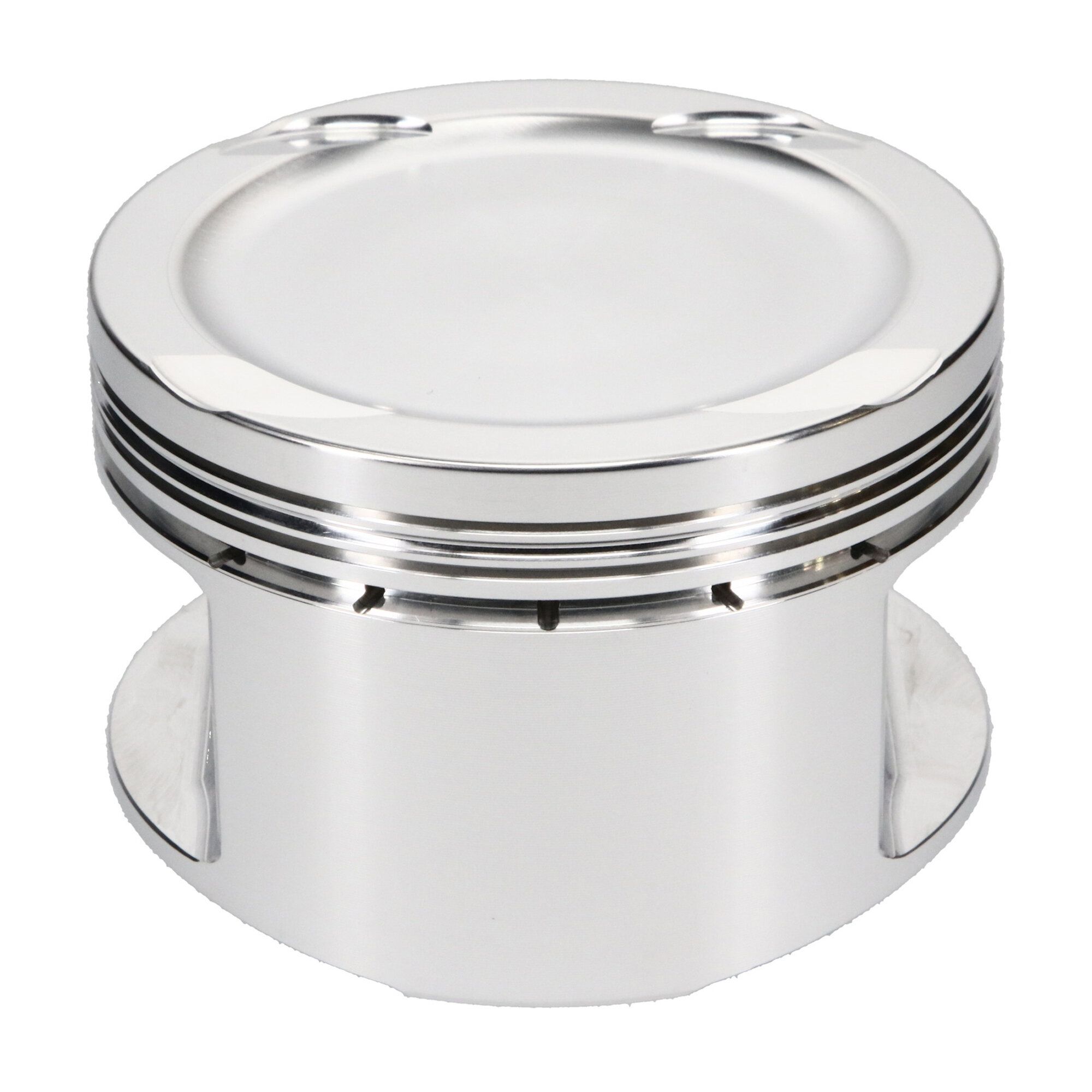

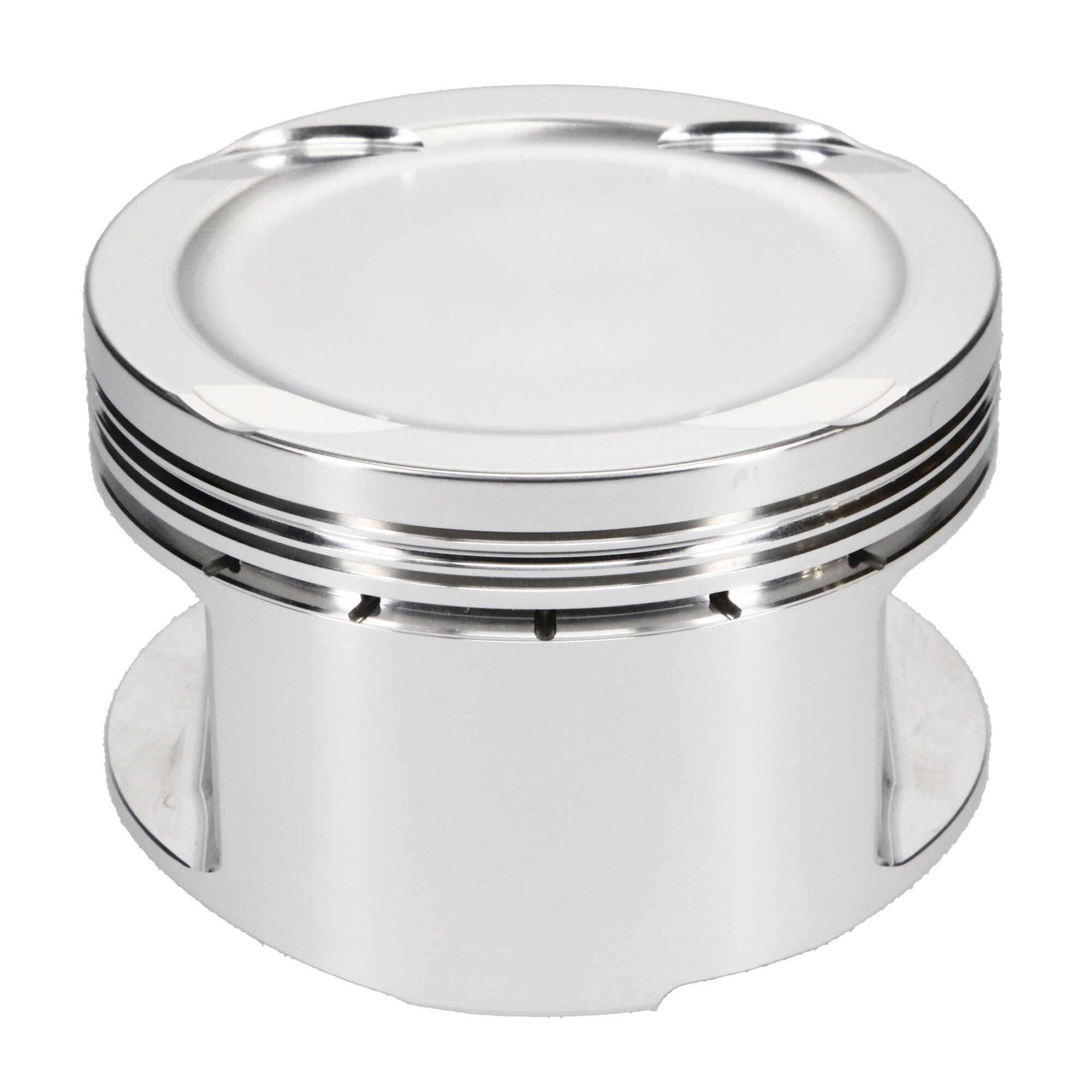

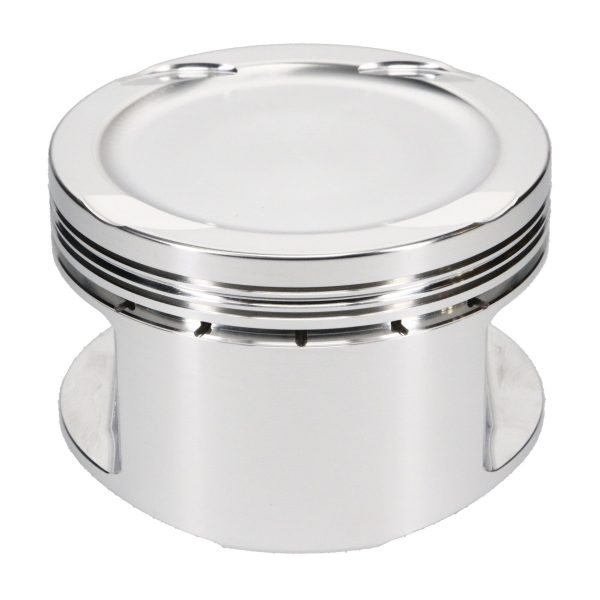

JE, Toyota, 1FZ-FE, 3.937 in. Bore, 11.50:1, Dome, Single Piston
$220.05
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564025043
Add-On: JG1001-3937
Add-On: 024-2500-20-51S
Add-On: 031-042-CS
Bore Diameter: 100.00
Compression Height: 1.535
Cylinder Head: 1FZ-FE
Engine: 1FZ-FE
Forging Type: Round
Industry: Automotive
Make: TOYOTA
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 470
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 1.024
Piston Pin Wall Thickness: 0.200
Piston Volume: 13.1
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
