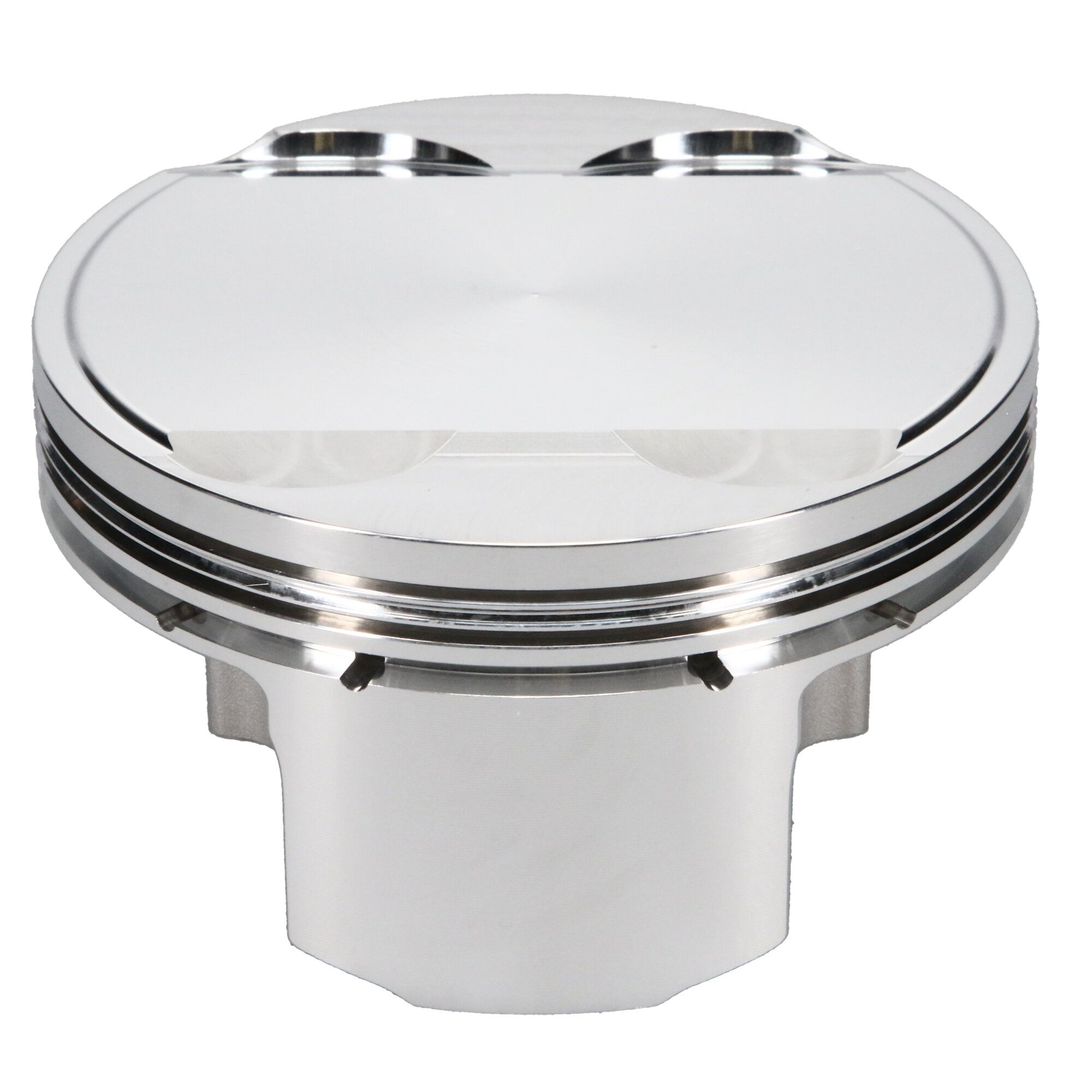

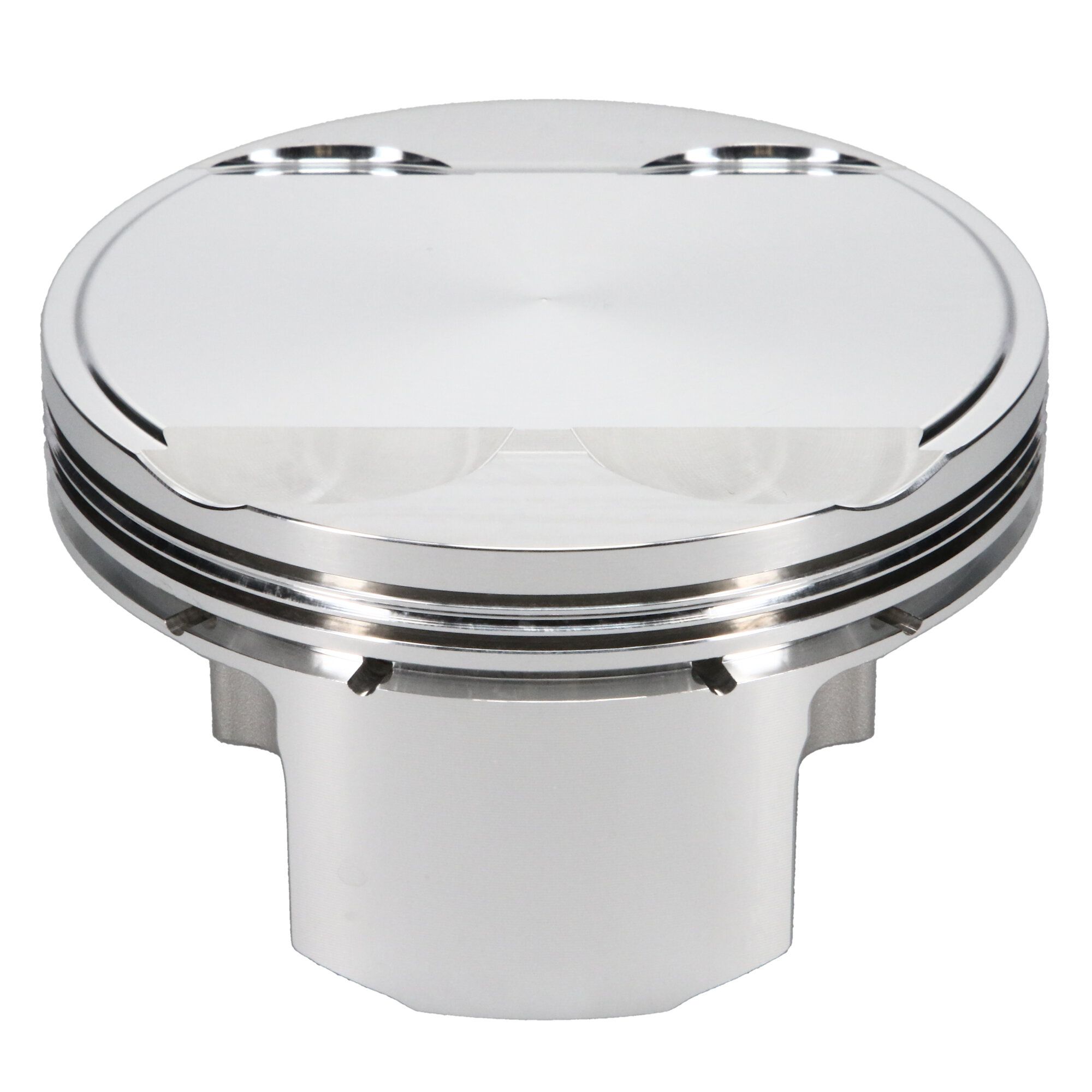

JE, Triumph, Rocket 3, 11.70:1, 101.0 mm Bore, Single Piston
$251.46
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564213068
Add-On: JG3101-4000-7
Add-On: 866-2250-15-51C
Add-On: 866-063-MW
Bore Diameter: 101.60
Cylinder Head: BMW 4 VALVE
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 11.70:1
Oil Ring Thickness: 0.119
Out of Stock Message: Call for Availability
Piston Avg Wt: 385
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.150
Piston Volume: 12.4
Product Market: Street
Product Market: V-Twin
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
