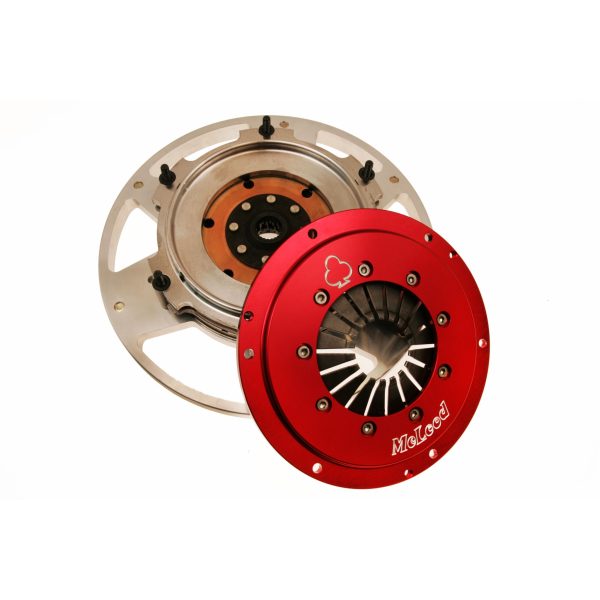

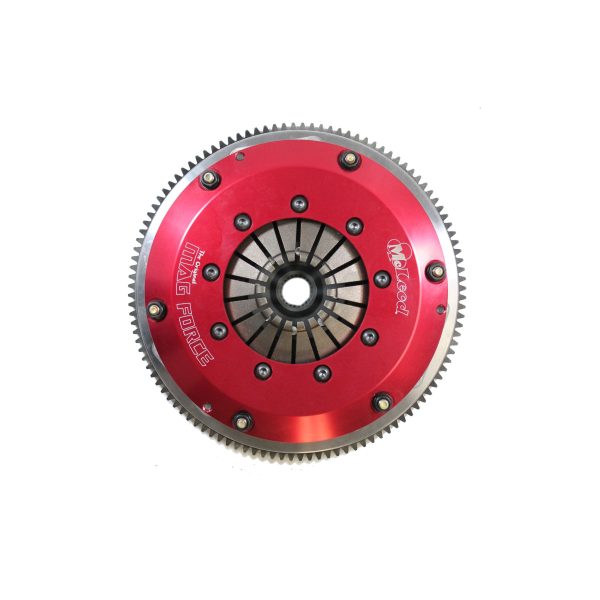

Mag Force:Double Disc: Pin Drive::1963-95 SBF:0Bal:1-1/16×10:164T
- The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.
$1,981.25
Mag Force – These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Additional Attributes:
GTIN: 00887753317209
Balance: For Ext Balanced Also Order Weight Kit 560222
Disc Diameter: 8In.
Disc Style: Puck Style
Engine: 1964-1995 SBF
Engine Balance: Internal Balance
Flywheel Included: Yes
Flywheel Material: Aluminum
Make: Ford
Number of Discs: Double
Racing Application: Road Race & Slalom Racing
Ring Gear: 164 tooth
Spline: 1 1/16In. x 10
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
I0008_Mag_Force_Clutch_Instructions
