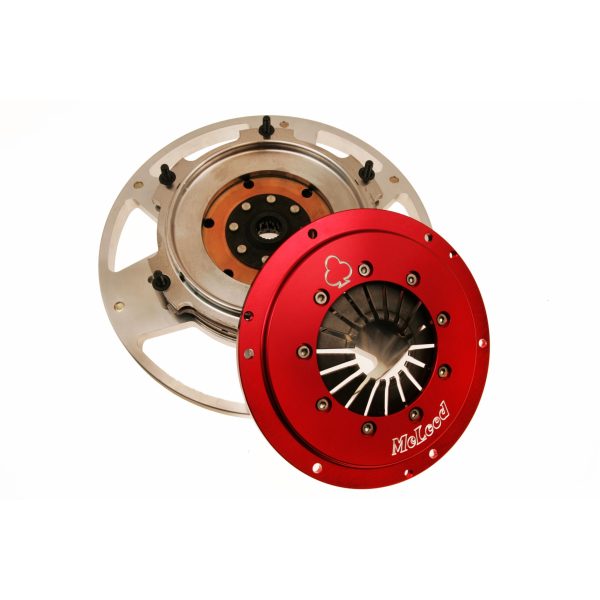

Mag Force:Double Disc:Pin Drive:Ford:1958-76 BBF Fe:0Bal:1-3/8×10:184T:Must use with internal hydraulic bearing.
- The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.
$1,931.25
Mag Force – These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Additional Attributes:
GTIN: 00887753676450
Alignment Tool Included: Yes
Hardware Included: Yes
Disc Diameter: 8In.
Disc Material: Sintered Iron
Disc Style: Segmented
Engine: 1958-76 BBF Fe
Engine Balance: For External Balance use 563333 Kit
Flywheel Included: Yes
Flywheel Material: Aluminum
Balance: Internal Balance
Number of Discs: Double
Make: Ford
Pilot Bushing Included: No
Pilot Bushing Material: N/A
Racing Application 3: Dry Lakes (Bonneville)
Racing Application 2: Drifting
Racing Application: Road Race & Slalom Racing
Ring Gear: 184 tooth
Spline: 1-3/8 x 10
Throwout Bearing Included: No
Throwout Bearing Style: Standard
NOTE:: This application require a 1300 Series Bolt on style bearing to work properly. Please Call McLeod Tech for more info at 714 630 2764
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
I0008 Mag Force Installation Instructions
