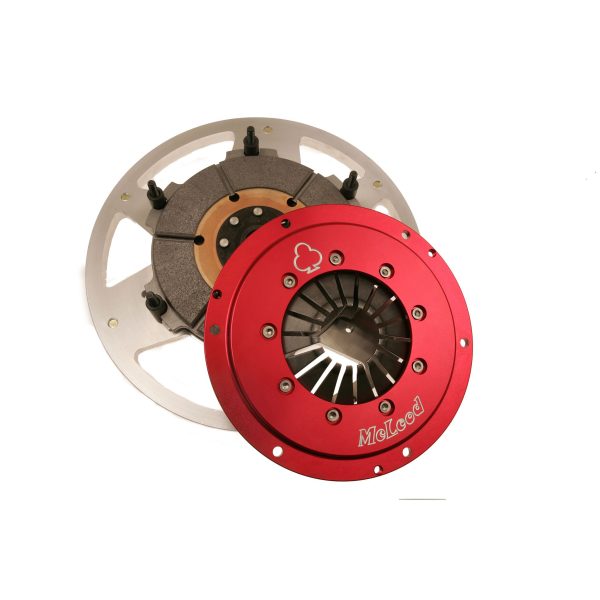

Mag Force:Double Disc:Strap Drive:1996-04 4.6L:0Bal:8blt crnk:1-1/16×10:164T
- The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.
$1,618.75
Mag Force – These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Additional Attributes:
GTIN: 00887753315021
Make: Ford
Engine: 1996-2017 4.6L/5.0L/5.4L Modular with 8 Bolt Crank
Torque Rating: 900 Ft. Lbs.
Spline: 1-1/16 x 10
Additional Counter Weight Kit Required: N/A
Ring Gear: 164T
Pressure Plate Style: Diaphragm
Pilot Bushing Material: N/A
Pilot Bushing Included: No
Number of Discs: Double
Hub Style: Solid
Hardware Included: Yes
Alignment Tool Included: Yes
Flywheel Material: Aluminum
Flywheel Included: Yes
Engine Balance: Neutral
Disc Style: Segmented
Disc Material: Sintered Iron
Disc Diameter: 8In.
Throwout Bearing Included: Yes
Clutch Usage: Drifting,Land Speed, Road Race
Clutch Patterns: Proprietery McLeod Mag Force
Throwout Bearing Style: Standard
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
I0008_Mag_Force_Clutch_Instructions
