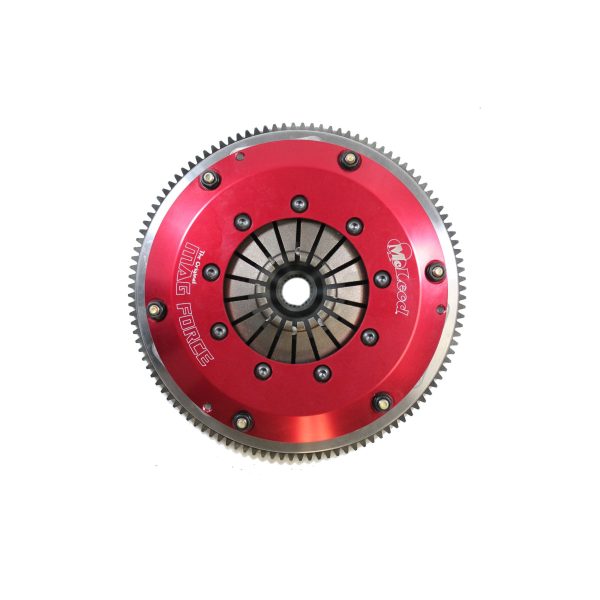

Mag Force:Triple Disc:Pin Drive:Ford:1969-98 BBF 429/460:0Bal:1-1/8×26:176T
- The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.
$1,981.25

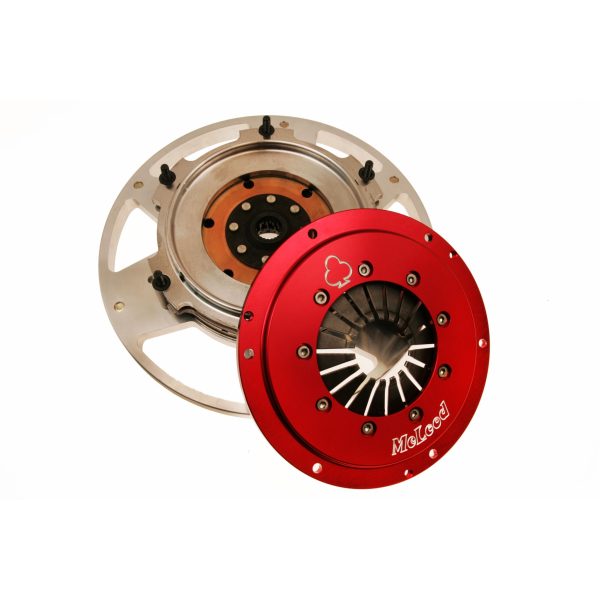

Mag Force – These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Additional Attributes:
GTIN: 00887753675071
Make: Ford
Engine: 1969-1978 BBF
Ring Gear: 176 tooth
Spline: 1 1/8In. x 26
Racing Application: Road Race & Slalom Racing
Racing Application 2:: Drifting
Pilot Bushing Material: N/A
Pilot Bushing Included: No
Number of Discs: Triple
Alignment Tool Included: Yes
Throwout Bearing Included: No
Hardware Included: Yes
Engine Balance: Internal Balance
Balance: For Ext Balanced Also Order Weight Kit 563333
Flywheel Material: Aluminum
Flywheel Included: Yes
Disc Material: Sintered Iron
Disc Diameter: 8In.
Throwout Bearing Style: Standard
NOTE:: Triple Disc units are not guaranteed to fit in a factory depth bell-housing. You may need to go to a aftermarket high gear can. For further info please call McLeod Tech 714-630-2764
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
I0008_Mag_Force_Clutch_Instructions
