McLeod 1968-69 Camaro/Firebird Without Console Installation Kit For Tremec TKX 5 Speed.
$5,248.75

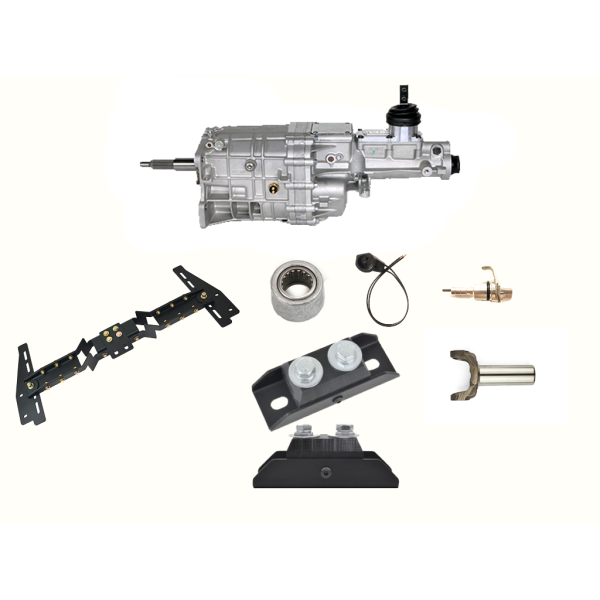

The Kit Features he newly introduced Tremec TKX 5 Speed Transmission Along With A Steel Adjustable Cross Member. Also Included Is A World Class Shifter, Speedo Adapter, Isotech Transmission Mount, Pilot Bearing, Reverse Light Connector Harness And A Heavy Duty Yoke. One Box Shopping For An Easy Conversion.
Additional Attributes:
GTIN: 00887753677372
Transmission Included: Yes
Number of Gears: 5
Inputshaft Diameter: 1.125In.
Input Spline Quantity: 26
Output Spline Quantity: 31
Bellhousing Included: No
Yoke Included: Yes
Shifter Included: Yes
First Gear Ratio: 2.87:1
Second Gear Ratio: 1.89:1
Third Gear Ratio: 1.28:1
Fourth Gear Ratio: 1.00:1
Fifth Gear Ratio: .68:1
Case Material: Aluminum
Cross Member Included: Yes
Cross Member Material: Steel
Cross Member Finish: Black Powder Coat
Transmission Mount Included: Yes
Transmission Mount Type: Polyurethane
Transmission Patch Included: No
Pilot Bushing Included: Yes
Pilot Bushing Material: Steel
Pilot Bushing Type: Roller
Speedometer Cable and Gear Included: No
Backup Light Connector Harness Included: Yes
Mounting Hardware Included: Yes
Fabrication Required: Yes
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: BX
