Prerunner/Trail Series Transmission; TH400; Fits w/GM SB/BB 2WD w/Auto Valve w/1.875 Spicer Yoke; Max 600 HP/550 ft/lbs Torque; w/4in Tailshaft; w/o SpeedometerDrivenGear/Housing;
- Deep Aluminum Pan
- Intended For Off Road Use
$2,555.31

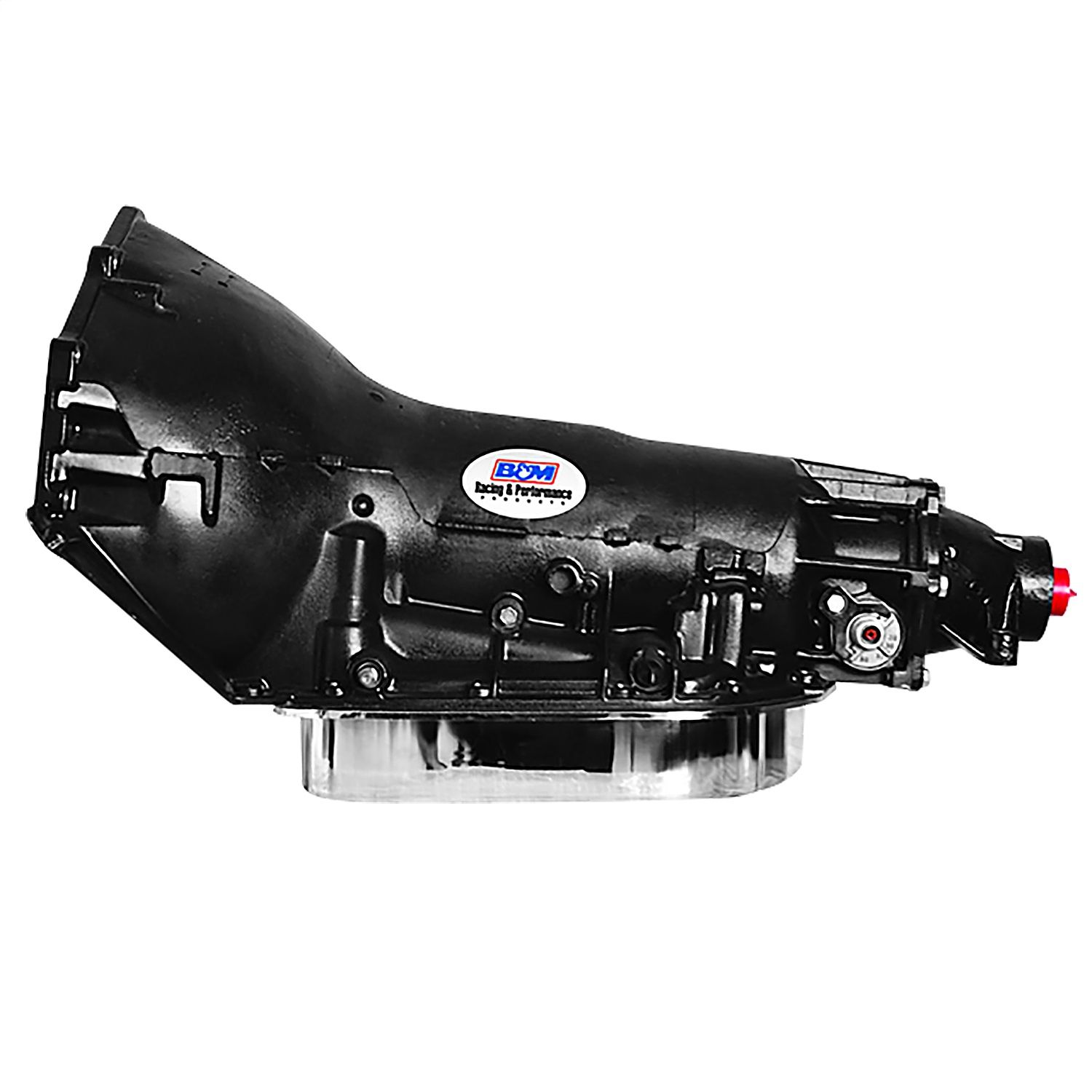

The B&M TH-400 PreRunner/Trail automatic transmission is for RWD GM SB/BB applications. This transmission features a large diameter bushing for use with a large diameter yoke (1-7/8 in) and includes a deep, cast aluminum pan. This transmission also features an automatic/forward valve body, a 2.48:1 first gear ratio, 1.48:1 second gear, rebuilt front pump (utilizes B&M pressure regulator spring and shims), all new B&M high performance friction plates, new intermediate roller clutch, new kickdown band with welded anchors, machined center support with new case saver ring, all new thrust bearings and races, and new adjustable modulator and silencer ring, Max 600 HP / 550 Ft/Lbs. Intended for off road/trail use.
Additional Attributes:
GTIN: 00019695954062
California Proposition 65 Chemical Name 1: Lead
California Proposition 65 Chemical Name 2: Benzene
California Proposition 65 Chemical Name 3: Chromium (hexavalent compounds)
Cooler Included: No
Dipstick Included: No
Drive Type: RWD
Friction Plate: New
Horsepower Rating: 600
Intermediate and Low Roller Clutches: New
Package Contents: Transmission
Tailshaft Length: 4.000 in.
Torque Capacity: 550 ft/lbs.
Torque Converter Included: No
Trans Model: GM- TH400 (Auto) 3 Speed
Transmission Model: TH400
Transmission Pan Finish: Natural
Transmission Pan Material: Aluminum
Transmission Pan Type: Deep Cast
Transmission Series: Prerunner/Trail
Valve Body Configuration: Recalibrated
Valve Body Pattern: Forward
Valve Body Type: Automatic
WARNING CA Proposition 65: No
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
