Black Color

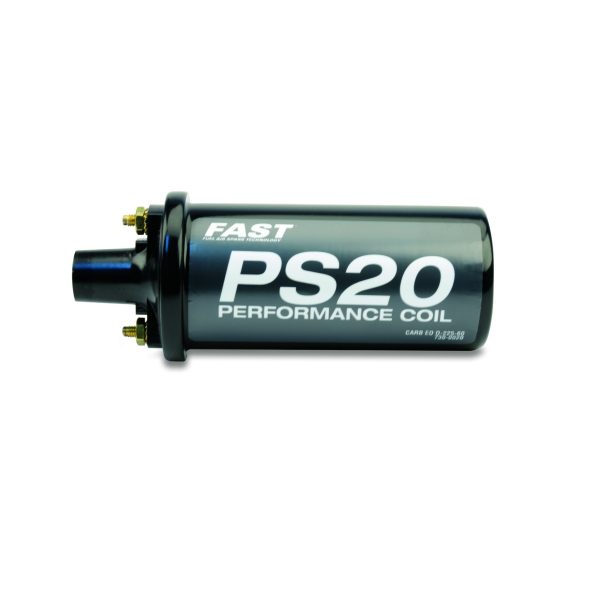

The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system.
GTIN: 00021174033410
Ballast Resistor Included: Yes
Mounting Bracket Included: No
Turns Ratio: 60:1
Terminal Quantity: 2
Spark Duration: 385 uS
Secondary Resistance: 5.2K ohms
Secondary Inductance: 26 H
Quantity: Sold Individually
Primary Resistance: 1.4 ohms
Primary Inductance: 7.5 mH
Peak Current: 145 mA
Oil Filled: Yes
Mounting Position: Upright
Mount Type: Bracket
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Meets or Exceeds OEM Specs: Yes
Maximum Voltage: 46,000 V
Leakage Inductance: 1.3 mH
Height: 5.75
Diameter: 2.125
Coil Wire Terminal Quantity: 1
Coil Wire Included: No
Coil Wire Attachment: Female/Socket
Coil Style: Canister
Coil Shape: Round
Coil Internal Construction: Oil-Filled
Coil Color: Black
Weight: 1.75 lbs
C.A.R.B. Exempt?: Yes
C.A.R.B. EO Number: D-225-60
Emissions : Released
Life Cycle Status: Available To Order
Quantity of Each: 1
Package UOM: EA
