RXT:Modular Steel Base Plate:Sprung Hub Disc:1-1/8×26

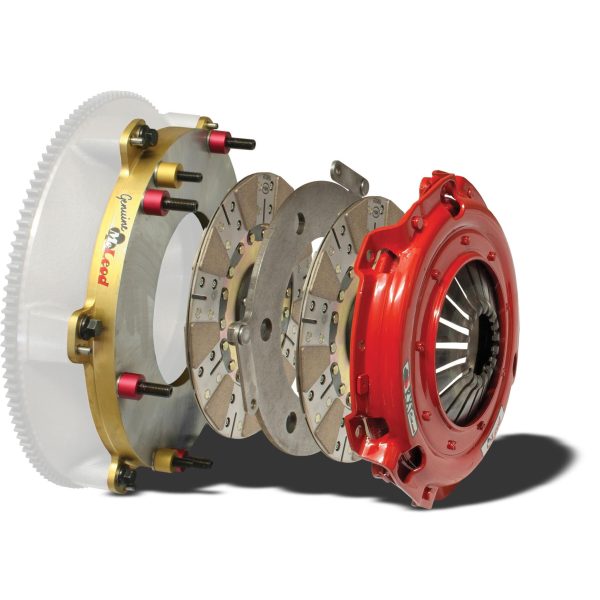

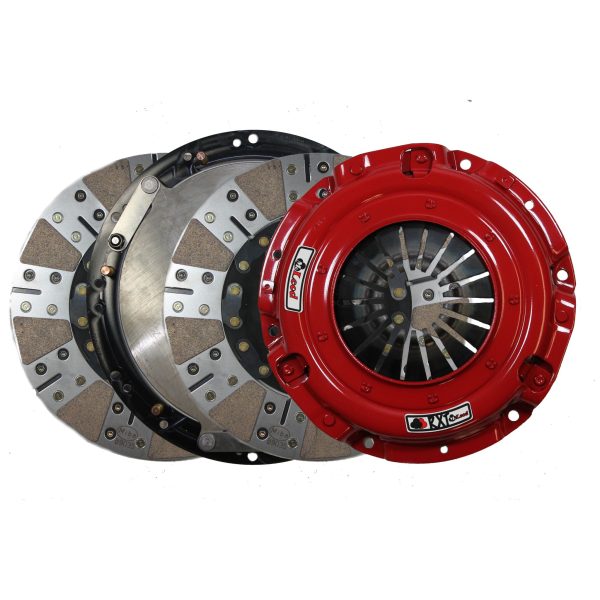

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT is what you’ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars

Additional Attributes:

GTIN: 00887753011503
Alignment Tool Included: Yes
Make: Chevrolet
Throwout Bearing Included: No
Spline: 1 1/8In. x 26
Pressure Plate Style: Diaphragm
Pilot Bushing Material: N/A
Pilot Bushing Included: No
Number of Discs: Double
Hub Style: Sprung
Clutch Patterns: RST/RXT Steel Adapter Plate Pattern
Horsepower Rating: 1000
Hardware Included: Yes
Flywheel Included: No
Disc Style: Full Face/Multi Pad
Disc Material: Ceramic
Disc Diameter: 9-11/16In.
Clutch Usage: Street/Track
Throwout Bearing Style: Standard

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA

PDF:

RST-RXTModular_Instructions
