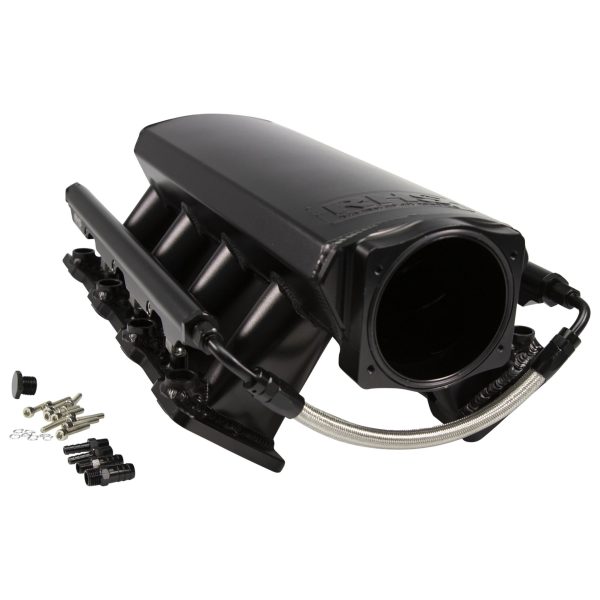

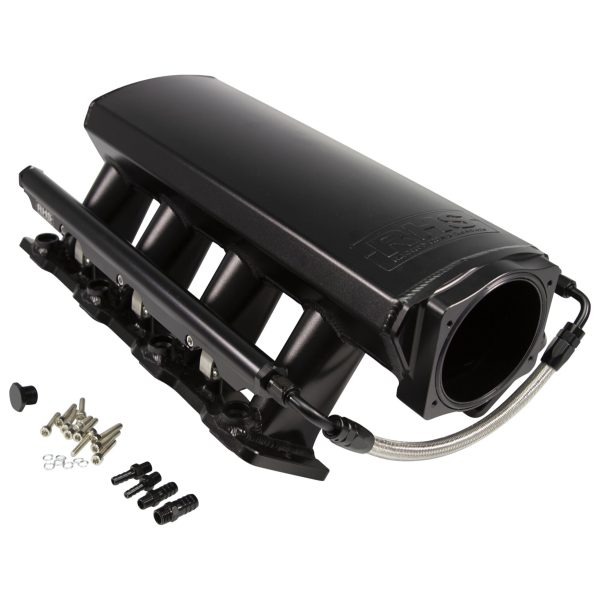

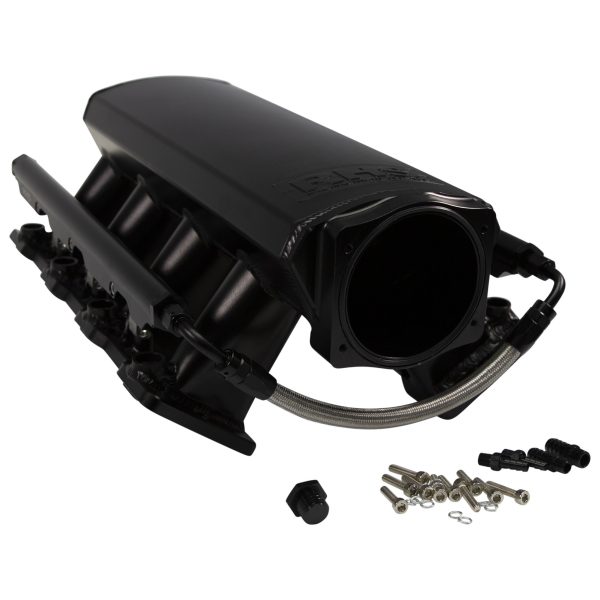

The RHS Sheet Metal Intake Manifold for GM LS1/Cathedral Port engines features a black anodized textured finish along with scalloped injector ports. Greatly increases airflow, great for High RPM and Boosted applications.
$599.95
The RHS Sheet Metal Intake features a black anodized textured finish for a unique high-end appearance. Scalloped fuel rails (included) further set this intake apart. The RHS Sheet Metal Manifold doesn’t just look good, it helps your engine achieve its peak potential, whether you’re building a high RPM screamer or a boosted powerhouse.
Additional Attributes:
GTIN: 00036584403876
Front Maximum Height: 8.267
Center Maximum Height: 8.267
Rear Maximum Height: 8.267
CNC Ported: No
Color: Textured Black Anodize
Intake Port Seals Included?: Yes
Upper to Lower Intake Seals Included?: N/A
Removable Intake Runners?: No
Intake Port Fitment: Cathedral (LS1)
Intake Style: Fabricated Sheet Metal
RPM Operating Range: 2500-7500
New or Remanufactured: New
Material: Aluminum
Boost Capable?: Yes
Maximum Recommended Boost Pressure: 45
Throttle Body Mounting Hole Outer Diameter: 115.6
Throttle Body Mounting Hole Inside Diameter: 102
Throttle Body Mounting Hole Bolt Attachment Number: 4
Compatible with FAST Big Mouth Throttle Bodies?: Yes
Compatible with FAST Modular Runner System?: No
Engine Family/Fitment: GM LS Gen III/IV Cathedral Port
Includes Intake to Engine Mounting Hardware?: Yes
Includes Fuel Rails?: Yes
Includes Fuel Rail Mounting Brackets?: Yes
Fuel Rail Mounting Thread: M6
Fuel Injector Pocket ID: 0.54
Recommended Fuel Injector O-Ring O.D.: 0.574
Includes Fuel Injectors?: No
Recommended Fuel Injector Profile: EV1/EV6 (LS1/LS6 or LS2)
EGR Provision?: No
Nitrous Bungs?: No
Extened Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Proposed
Packaging:
Quantity of Each: 1
Package UOM: EA
