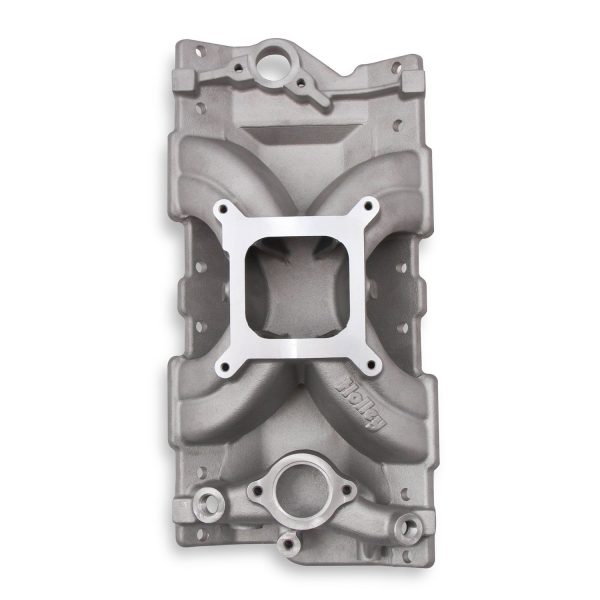

Single Plane Intake Manifold Kit; Square Bore Carb Mounting Flange; 2500-7500 RPM; Front 4.18 in./Rear 5.28 in. Height; 1.92 in. H/1.20 in. Wi Port Size;
The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.
GTIN: 00090127052136
Barrel: Four
Construction: Cast
Cylinder Head Type: Standard
Emission: N/A
Engine Make/Size: Chevy Small Block V8
Finish: Satin
Front Height: 4.180 in.
Fuel System Type: Carb
Manifold Type: High Rise
Number of Carbs: One
Position: N/A
Rear Height: 5.280 in.
RPM Range: 2500-7500
Usage: Racing
WARNING CA Proposition 65: No
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Quantity of Each:
Package UOM:
