Street/Strip Transmission; 30 Spline Input; Not for Use w/60 deg. V6; Does Not Replace 4L60E [Electronic Shift Model];
- Street/Strip Transmission
- Heavy Duty Sunshell
- Electronic Speedo Connection
- Rated up to 500HP and 450LB FT
- 90 Day Warranty
$3,557.63

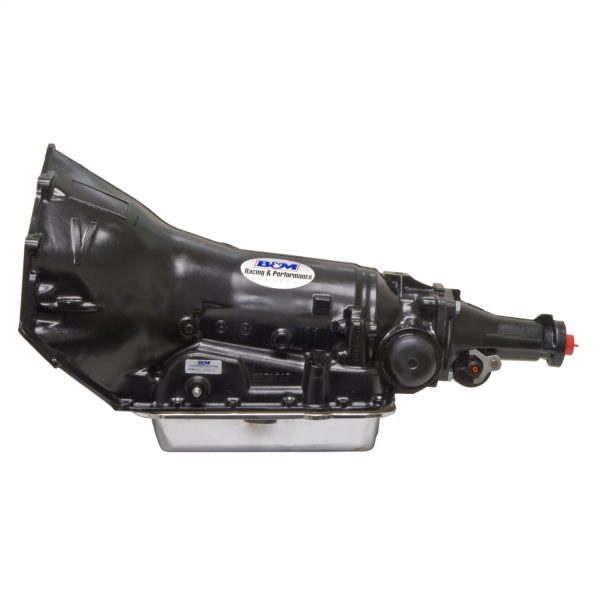

The B&M 700R4/4L60 Street Strip transmission is suitable for use behind engines producing up to 500HP and 450LB FT of torque which covers most small block and mild big block engines. It features a low first gear ratio and an overdrive 4th gear making it a very desirable transmission for street strip applications. This 4L60 transmission is for the electronic speedometer, but is not an electronically controlled transmission. B&M strongly recommends adding a Hi-Tek trans cooler to help further reduce heat build-up and extend the life of automatic transmissions. Can be used with a B&M Lock-up Controller. Does not fit Corvette or 60 degree V6 engines. Does not replace 4L60E transmissions.
Additional Attributes:
GTIN: 00019695001377
California Proposition 65 Chemical Name 1: Lead
California Proposition 65 Chemical Name 2: Chromium (hexavalent compounds)
California Proposition 65 Chemical Name 3: Benzene
Cooler Included: No
Dipstick Included: No
Drive Type: RWD/2WD
Friction Plate: New
Horsepower Rating: 500
Input Shaft Spline Quantity: 30
Intermediate and Low Roller Clutches: Included
Output Shaft Spline Quantity: 27
Package Contents: Transmission
Tailshaft Length: 4.000 in.
Torque Capacity: 450 ft/lbs.
Torque Converter Included: No
Trans Model: GM- TH700 R4 (Auto) 4 Speed
Transmission Model: 700R4
Transmission Pan Finish: Chrome
Transmission Pan Material: Steel
Transmission Pan Type: Stamped
Valve Body Configuration: Recalibrated
Valve Body Pattern: Forward
Valve Body Type: Automatic
WARNING CA Proposition 65: No
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
