Street/Strip Transmission; Max 600 HP/550 ft./lbs. Torque; 4 in. Tailshaft; Incl. Buick/Olds/Pontiac to Chevy Adapter Plate;
- Rebuilt Front Pump
- Recalibrated Valve Body
- High Performance Friction Materials
$2,143.93

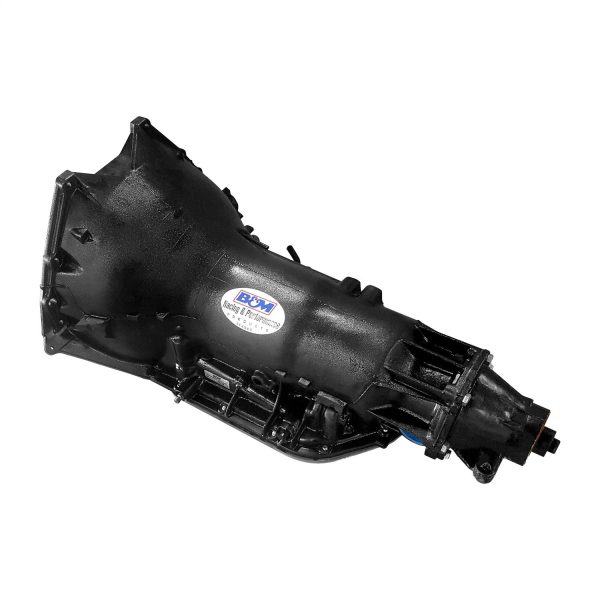

B&M Racing Street/Strip T400 Automatic transmission for Buick, Oldsmobile and Pontiac applications with large diameter bushing for use with large 1.875 inch Spicer yoke (part number 2-3-10431X.) This transmission is a complete ready to run unit (less converter) for high performance street and mild strip use. Since Chevrolet based T400 cores are getting harder to find, we’ve included a B&M Racing B.O.P./Chevy adapter plate so you can also use this transmission on 62 and later small block and big block Chevy engines. This transmission provides firm shifts and features a standard forward shift pattern. Includes a 2.48:1 first gear ratio, 1.48:1 second gear, rebuilt front pump utilizes B&M pressure regulator spring and shims, all new B&M high performance friction plates, new intermediate roller clutch, new kickdown band with welded anchors, machined center support with new case saver ring, all new thrust bearings and races, new adjustable modulator and silencer ring, new external electric connector, kickdown solenoid and a recalibrated valve body. Transmission has a 4" tailshaft. Recommended max 600 HP and 550 Lb Ft
Additional Attributes:
GTIN: 00019695953300
California Proposition 65 Chemical Name 1: Lead
California Proposition 65 Chemical Name 2: Chromium (hexavalent compounds)
California Proposition 65 Chemical Name 3: Benzene
Cooler Included: No
Dipstick Included: No
Drive Type: RWD
Friction Plate: New
Horsepower Rating: 600
Intermediate and Low Roller Clutches: New
Output Shaft Spline Quantity: 32
Package Contents: Transmission
Tailshaft Length: 4.000 in.
Torque Capacity: 550 ft/lbs.
Torque Converter Included: No
Trans Model: GM- TH400 (Auto) 3 Speed
Transmission Model: TH400
Transmission Pan Finish: Chrome
Transmission Pan Material: Steel
Transmission Pan Type: Stamped
Valve Body Configuration: Recalibrated
Valve Body Pattern: Forward
Valve Body Type: Automatic
WARNING CA Proposition 65: No
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
