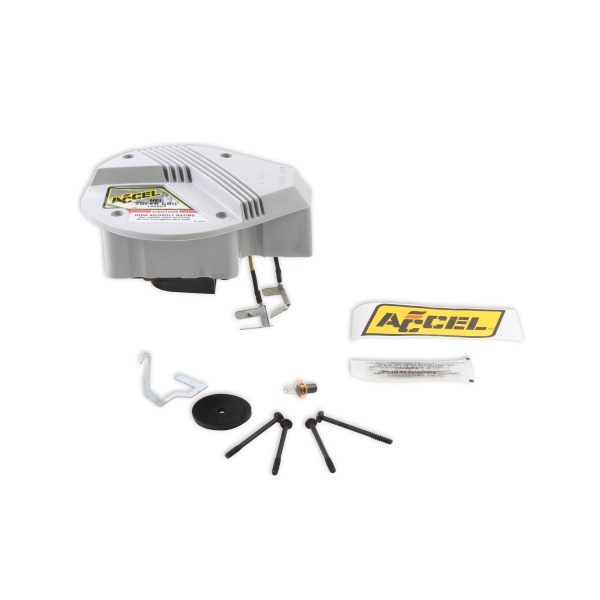

SuperCoil Ignition Coil; HEI In-Cap Design; Primary Resist 0.5 Ohms; Secondary 8.6 k Ohms; Turn Ratio 80:1; Max Voltage 45000V; Red And Yellow Primary Wire; Gray;
These coils feature advanced bobbin technology, highly specialized silicone magnetic steel cores, along with optimized winding, resistance and turns ratios to delivery 10-15 percent more energy than the OEM coils. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct plug replacements for OEM coils. They feature bodies and, or secondary towers molded in ACCEL yellow and feature brass secondary contacts (except direct fire coil on plug applications).
GTIN: 00743047006993
Color: Gray
Maximum Voltage: 45000
Package Quantity: 1
Peak Increase in Voltage: 18%
Primary Resistance: .500 ohms
Secondary Resistance: 8.6K ohms
Turns Ratio: 80:1
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Emissions : Released
Life Cycle Status: Available To Order
