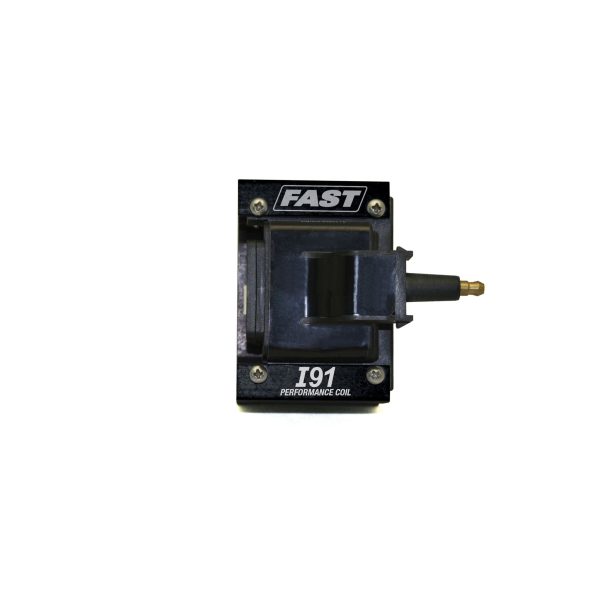

The I91 is a great choice for street an performance applications.

$80.95

SKU: DXKP-730-0891

The I91 Inductive Coil is designed for use with high output inductive systems such as the I6 or XR-3000

High-output E-core coils for race and street
Up to 70% higher energy at the spark plug than stockfor maximum performance, race or street
E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance.
Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core
Insulated primary connector for enhanced safety with mating connector included
Improved coil wire retention and longer creep path protects against high voltage arcing
50 state legal CARB E.O. D-225-60

The I91 Coil is designed for use with FAST high output inductive ignition systems such as the I6 Ignition Control or the XR700 and XR3000 Electronic Conversion Systems. The internal design is optimized to produce a long duration spark coupled with higher voltage output making it ideal for street and performance applications.

Additional Attributes:

GTIN: 00021174021080
Ballast Resistor Included: No
Mounting Bracket Included: Yes
Weight: 1.25 lbs
Turns Ratio: 57:1
Terminal Quantity: 2
Spark Duration: 280 uS
Secondary Resistance: 4.6K ohms
Secondary Inductance: 14.4 H
Quantity: Sold Individually
Primary Resistance: .40 ohms
Primary Inductance: 4.7 mH
Peak Current: 380 mA
Oil Filled: No
Mounting Position: Any
Mount Type: Integral
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Meets or Exceeds OEM Specs: Yes
Maximum Voltage: 47,000 V
Length: 3.75
Leakage Inductance: .23 mH
Height: 3
Diameter: N/A
Coil Wire Terminal Quantity: 1
Coil Wire Included: No
Coil Wire Attachment: Male/HEI
Coil Style: E-Core
Coil Shape: Square
Coil Internal Construction: Epoxy
Coil Color: Black
Width: 2.5
C.A.R.B. Exempt?: Yes
C.A.R.B. EO Number: D-255-60

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
