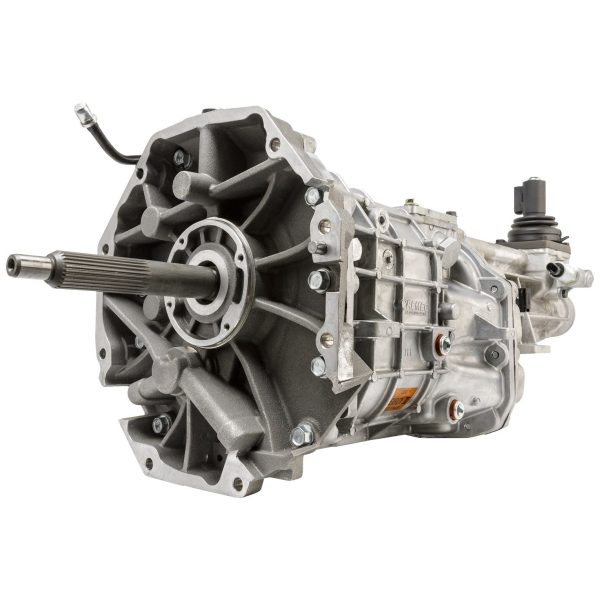

Tremec Magnum XL 6 Speed Transmission
- • 700 lb-ft torque capacity
• Choice of two different gear ratio sets (2.66 or 2.97)
$4,368.75
The Magnum XL is an extension of our revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum’s brute strength and sophistication, but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications.
Additional Attributes:
GTIN: 00887753317575
Torque Capacity: 700
Input Shaft Diameter: 1.125
Input Shaft Spline Quantity: 26
Output Shaft Spline Quantity: 31
Bellhousing Included: No
Case Material: Aluminum
Number of Gears: Six
First Gear Ratio: 2.66:1
Second Gear Ratio: 1.78:1
Third Gear Ratio: 1.30:1
Forth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.80:1
Sixth Gear Ratio: 0.63:1
Reverse Gear Ratio: 2.90:1
Shifter Included: Yes
Yoke Included: No
Yoke Style: Slip-on
Extened Information:
Emissions : Released
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
TREMEC-2020-Performance-Products-Magnum-XL-Page
