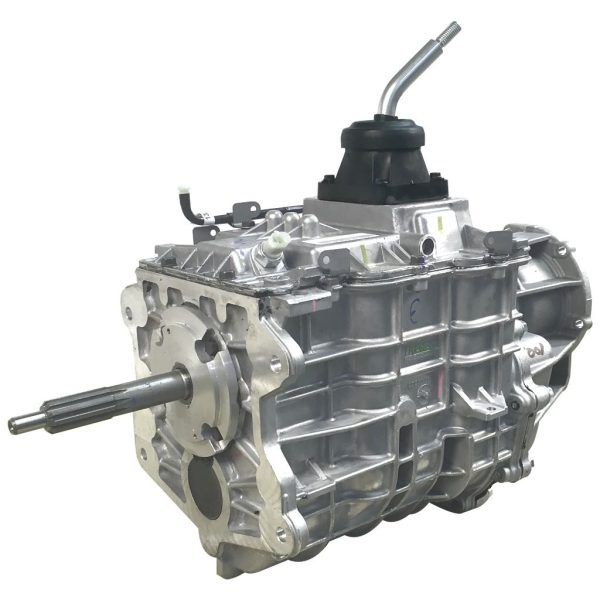

TREMEC TR-4050 4WD 5 Speed

TREMEC TR-4050 4WD 5 Speed
$4,295.00
SKU: BHGR-TDET 17341

Transmission, Manual, Tremec TR-4050, 1-1/8 Inch 10 Spline, 4WD Vehicles

  • Based on TR-4050 used incurrent OEM production
    Die-cast aluminum case saves weight while offering considerable rigidity
    All forward gears and reverse gear synchronized
    Multiple shifter locations provide design and installation flexibility

The TREMEC TR-4050 5-speed manual transmission is designed for longitudinal engine vehicles and is particularly suited for light and medium duty trucks. It includes a single overdrive and a light-weight aluminum housing All forward gears are fully synchronized and use a carbon friction material for improved shift quality. Tapered roller bearings are used to minimize noise, vibration and harshness (NVH) and improve efficiency. A standard six-bolt Power Take-Off (PTO) located on the right side of the transmission offers users the ability to run a variety of hydraulic accessories.

Additional Attributes:

GTIN: 00887753677662
Torque Capacity: 425
Input Shaft Diameter: 1.125
Input Shaft Quantity: 10
Bell Housing Included: No
Case Material: Aluminum
Number of Gears: Five
First Gear Ratio: 6.16:1
Second Gear Ratio: 3.11:1
Third Gear Ratio: 1.71:1
Forth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.76:1
Reverse Gear Ratio: 6.03:1
Shifter Included: Yes
Yoke Included: No

Extened Information:

Emissions : Released
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
